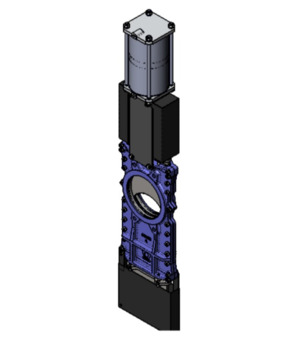

Knife gate valve with double acting actuator L7N02HSM2-3-150-PI01

Knife gate valve with double acting actuator L7N02HSM2-3-150-PI01

knife gate valve with double acting actuator series L7N; wafer type; body ductile iron EN-GJS-500-7; gate AISI 316 mirror polished; soft sealed EPDM; packing PTFE/copper; nominal flange pressure PN10/16; sealed in both directions; control pressure 5...8bar; medium temperature -5...+90°C; DN 150mm; length 60mm; pressure range 0...3bar; actuator oversized 160mm; retaining ring AISI 316 reinforced; sliding guide PTFE; flushing holes in the housing; prepared for 2 inductive limit switches M18

Intrastat No.: 84818061
Country of origin: Spain Made in Europe
Short Itemnumber: L7N02HSM23150PI01
https://www.stasto.eu/web/image/product.template/224445/image_1920?unique=edd69c1

knife gate valve with double acting actuator series L7N; wafer type; body ductile iron EN-GJS-500-7; gate AISI 316 mirror polished; soft sealed EPDM; packing PTFE/copper; nominal flange pressure PN10/16; sealed in both directions; control pressure 5...8bar; medium temperature -5...+90°C; DN 150mm; length 60mm; pressure range 0...3bar; actuator oversized 160mm; retaining ring AISI 316 reinforced; sliding guide PTFE; flushing holes in the housing; prepared for 2 inductive limit switches M18

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Connection
  • DN
  • Length
  • Cable length
  • Function
  • Actuation
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Switch design
  • Coil
  • Flow rate
  • Medium temperature
  • Brand
  • Suitable silencer

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
DN 100 mm
Length 50 mm
Pressure range 0...10 bar
DN 100 mm
Length 50 mm
No spare parts are available for this product.
