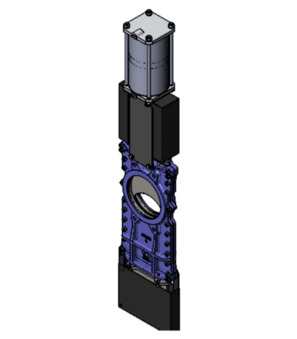

Knife gate valve with double acting actuator L7N02HSM2-3-150-PI02
knife gate valve with double acting actuator series L7N; wafer type; body ductile iron EN-GJS-500-7; gate AISI 316 mirror polished; soft sealed EPDM; packing PTFE/copper; nominal flange pressure PN10/16; sealed in both directions; control pressure 4...8bar; medium temperature -5...+90°C; DN 150mm; length 60mm; pressure range 0...3bar; actuator oversized 160mm; retaining ring AISI 316 reinforced; sliding guide PTFE; flushing holes in the housing; prepared for 2 inductive limit switches M18
Country of origin: Spain
Short Itemnumber: L7N02HSM23150PI02
knife gate valve with double acting actuator series L7N; wafer type; body ductile iron EN-GJS-500-7; gate AISI 316 mirror polished; soft sealed EPDM; packing PTFE/copper; nominal flange pressure PN10/16; sealed in both directions; control pressure 4...8bar; medium temperature -5...+90°C; DN 150mm; length 60mm; pressure range 0...3bar; actuator oversized 160mm; retaining ring AISI 316 reinforced; sliding guide PTFE; flushing holes in the housing; prepared for 2 inductive limit switches M18
| dimension | |
|---|---|
| DN | 100 mm |
| Length | 50 mm |
| pressure | |
| Pressure range | 0...10 bar |
