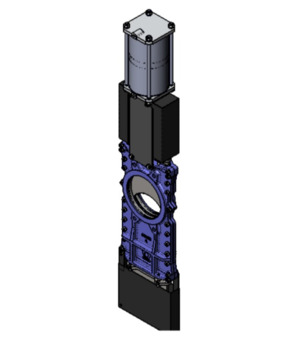

Knife gate valve with double acting actuator Series L7N; Wafer type; Body Ductile iron EN-GJS-500-7; Gate 1.4401 Mirror polished; Soft sealed EPDM; Packing PTFE/Copper; Nominal flange pressure PN10/16; Sealed in both directions; Control pressure 5...8bar; Medium temperature -5...+90°C; DN 100mm; Length 50mm; Pressure range 0...3bar; Actuator Oversized 125mm; Retaining ring 1.4401 Reinforced; Sliding guide PTFE; Flushing holes in the housing; Prepared for 2 inductive limit switches M18
Country of origin: Spain
Short Itemnumber: L7N02HSM23100PI01
knife gate valve with double acting actuator series L7N; wafer type; body ductile iron EN-GJS-500-7; gate AISI 316 mirror polished; soft sealed EPDM; packing PTFE/copper; nominal flange pressure PN10/16; sealed in both directions; control pressure 5...8bar; medium temperature -5...+90°C; DN 100mm; length 50mm; pressure range 0...3bar; actuator oversized 125mm; retaining ring AISI 316 reinforced; sliding guide PTFE; flushing holes in the housing; prepared for 2 inductive limit switches M18
Technical specifications
| Pressure range | 0...10 bar |
|---|---|
| DN | 100 mm |
| Length | 50 mm |
| Pressure range | 0...10 bar |
| DN | 100 mm |
| Length | 50 mm |
