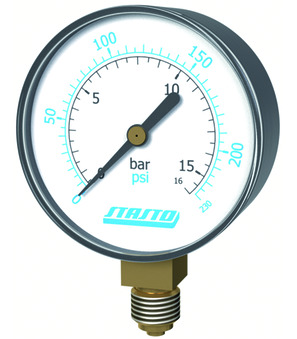

Bourdon tube manometer Series MA001-B

Manometer - Standard construction

Bourdon tube manometer Series MA001-B

Ø 40/50/63mm; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Below; Class 1,6

Data sheets, CAD files and further documents are available with the respective variant.

48Articles
Store guide
Other series

All prices exclude tax.

Grundversion

AvailabilityPriceQuantity
MA001-40B-V
Specifications
Brand
STASTO
40 mm 1/8" -1...0 bar 16,20 €
MA001-40B-1,6
Specifications
Brand
STASTO
40 mm 1/8" 0...1,6 bar 16,20 €
MA001-40B-2,5
Specifications
Brand
STASTO
40 mm 1/8" 0...2,5 bar 14,60 €
MA001-40B-4
Specifications
Brand
STASTO
40 mm 1/8" 0...4 bar 14,70 €
MA001-40B-6
Specifications
Brand
STASTO
40 mm 1/8" 0...6 bar 14,70 €
MA001-40B-10-D
Specifications
Brand
STASTO
40 mm 1/8" 0...10/0...145 bar/psi 14,70 €
MA001-40B-16
Specifications
Brand
STASTO
40 mm 1/8" 0...16 bar 14,70 €
MA001-40B-25
Specifications
Brand
STASTO
40 mm 1/8" 0...25 bar 14,70 €
MA001-40B-40
Specifications
Brand
STASTO
40 mm 1/8" 0...40 bar 14,70 €
MA001-40B-60
Specifications
Brand
STASTO
40 mm 1/8" 0...60 bar 14,60 €
MA001-50B-V
Specifications
Brand
STASTO
50 mm 1/4" -1...0 bar 16,20 €
MA001-50B-V1,5
Specifications
Brand
STASTO
50 mm 1/4" -1...+1,5 bar On request
MA001-50B-1
Specifications
Brand
STASTO
50 mm 1/4" 0...1 bar 16,60 €
MA001-50B-1,6
Specifications
Brand
STASTO
50 mm 1/4" 0...1,6 bar 16,20 €
MA001-50B-2,5
Specifications
Brand
STASTO
50 mm 1/4" 0...2,5 bar 15,20 €
MA001-50B-4
Specifications
Brand
STASTO
50 mm 1/4" 0...4 bar 15,20 €
MA001-50B-6
Specifications
Brand
STASTO
50 mm 1/4" 0...6 bar 15,20 €
MA001-50B-10-D
Specifications
Brand
STASTO
50 mm 1/4" 0...10/0...145 bar/psi 16,60 €
MA001-50B-16-D
Specifications
Brand
STASTO
50 mm 1/4" 0...16/0...230 bar/psi 16,60 €
MA001-50B-25-D
Specifications
Brand
STASTO
50 mm 1/4" 0...25/0...360 bar/psi 16,60 €
