Manometer - Standard construction

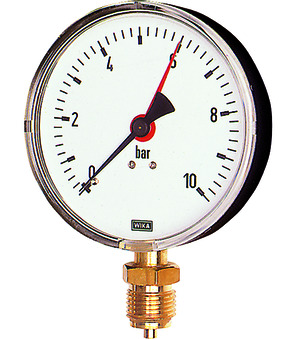

Bourdon tube manometer
Ø 160mm; Body Steel; Measuring unit, Motion work Copper based alloy; Front glass Flat instrument glass; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Below
Data sheets, CAD files and further documents are available with the respective variant.
15Articles
Store guide
All prices exclude tax.
Grundversion
| Availability | Price | Quantity | |||||
|---|---|---|---|---|---|---|---|
8300
Specifications
|
160 mm | 1/2" | -1200...0 | mbar | 75,60 € | ||
8301
Specifications
|
160 mm | 1/2" | -1...0 | bar | 75,60 € | ||
8303
Specifications
|
160 mm | 1/2" | -1...+1,5 | bar | 75,60 € | ||
8304
Specifications
|
160 mm | 1/2" | -1...+3 | bar | 75,60 € | ||
8305
Specifications
|
160 mm | 1/2" | -1...+5 | bar | 75,60 € | ||
8306
Specifications
|
160 mm | 1/2" | -1...+9 | bar | 75,60 € | ||
151
Specifications
|
160 mm | 1/2" | 0...0,6 | bar | 75,60 € | ||
152
Specifications
|
160 mm | 1/2" | 0...1 | bar | 75,60 € | ||
154
Specifications
|
160 mm | 1/2" | 0...2,5 | bar | 75,60 € | ||
155
Specifications
|
160 mm | 1/2" | 0...4 | bar | 75,60 € | ||
156
Specifications
|
160 mm | 1/2" | 0...6 | bar | 75,60 € | ||
157
Specifications
|
160 mm | 1/2" | 0...10 | bar | 75,60 € | ||
158
Specifications
|
160 mm | 1/2" | 0...16 | bar | 75,60 € | ||
159
Specifications
|
160 mm | 1/2" | 0...25 | bar | 75,60 € | ||
160
Specifications
|
160 mm | 1/2" | 0...40 | bar | 75,60 € |
