Manometer - Standard construction

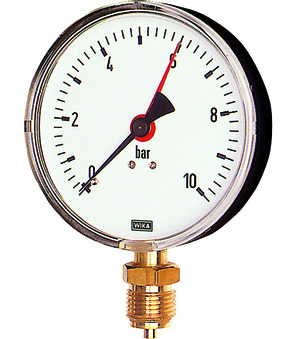

Bourdon tube manometer
Ø 80/100mm; Body Plastic; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Below
Data sheets, CAD files and further documents are available with the respective variant.
34Articles
Store guide
All prices exclude tax.
Grundversion
| Availability | Price | Quantity | |||||
|---|---|---|---|---|---|---|---|
5301
Specifications
|
80 mm | 1/2" | -1...0 | bar | 29,50 € | ||
5303
Specifications
|
80 mm | 1/2" | -1...+1,5 | bar | 29,50 € | ||
5304
Specifications
|
80 mm | 1/2" | -1...+3 | bar | 29,50 € | ||
5305
Specifications
|
80 mm | 1/2" | -1...+5 | bar | 29,50 € | ||
5306
Specifications
|
80 mm | 1/2" | -1...+9 | bar | 29,50 € | ||
5307
Specifications
|
80 mm | 1/2" | -1...+15 | bar | 29,50 € | ||
130
Specifications
|
80 mm | 1/2" | 0...0,6 | bar | 29,50 € | ||
131
Specifications
|
80 mm | 1/2" | 0...1 | bar | 29,50 € | ||
132
Specifications
|
80 mm | 1/2" | 0...1,6 | bar | 29,50 € | ||
133
Specifications
|
80 mm | 1/2" | 0...2,5 | bar | 29,50 € | ||
134
Specifications
|
80 mm | 1/2" | 0...4 | bar | 29,50 € | ||
135
Specifications
|
80 mm | 1/2" | 0...6 | bar | 29,50 € | ||
136
Specifications
|
80 mm | 1/2" | 0...10 | bar | 29,50 € | ||
137
Specifications
|
80 mm | 1/2" | 0...16 | bar | 29,50 € | ||
138
Specifications
|
80 mm | 1/2" | 0...25 | bar | 29,50 € | ||
139
Specifications
|
80 mm | 1/2" | 0...40 | bar | 29,50 € | ||
140
Specifications
|
80 mm | 1/2" | 0...60 | bar | 29,50 € | ||
7300
Specifications
|
100 mm | 1/2" | -1200...0 | mbar | 29,50 € | ||
7301
Specifications
|
100 mm | 1/2" | -1...0 | bar | 29,50 € | ||
7302
Specifications
|
100 mm | 1/2" | -1...+0,6 | bar | 29,50 € |
