Flanged ball valves - pneumatically operated

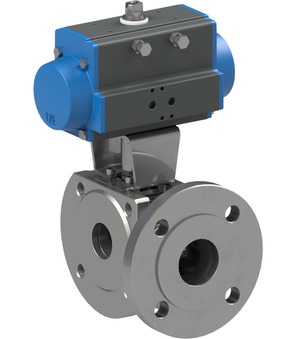

Flanged ball valve with pneumatic actuator Series BAMA, BAUA
3-way-type; Sealing on two sides; Pressure inlet just in front; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Reduced bore; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar
Data sheets, CAD files and further documents are available with the respective variant.
129Articles
Store guide
Other series
Flanged ball valve with pneumatic actuator Series BA040-D
Flanged ball valve with pneumatic actuator Series BA040-S
Flanged ball valve with pneumatic actuator Series BADA
Flanged ball valve with pneumatic actuator Series BADA
Flanged ball valve with pneumatic actuator Series BAEB, BAEA
Flanged ball valve with pneumatic actuator Series BAEB, BAEA
Flanged ball valve with pneumatic actuator Series BAMA, BAUA
Flanged ball valve with pneumatic actuator Series BAMA, BAUA
Flanged ball valve with pneumatic actuator Series BADA
Flanged ball valve with pneumatic actuator Series BADA
Flanged ball valve with pneumatic actuator Series BAEB, BAEA
Flanged ball valve with pneumatic actuator Series BAEB, BAEA
Flanged ball valve with pneumatic actuator Series BAMA, BAUA
Flanged ball valve with pneumatic actuator Series BAMA, BAUA
Flanged ball valve with pneumatic actuator Series BA055, BA056
Flanged ball valve with pneumatic actuator Series BA055, BA056
All prices exclude tax.
Grundversion
| Availability | Price | Quantity | |||||
|---|---|---|---|---|---|---|---|
| BAUA-015-SSTV-D0 | 15 mm | 40 mm | 10 mm | T | 849,10 € | ||
| BAUA-015-SSTV-D0B | 15 mm | 40 mm | 10 mm | T | 904,00 € | ||
| BAMA-015-SSTV-D0 | 15 mm | 40 mm | 10 mm | L | 849,10 € | ||
| BAMA-015-SSTV-D0B | 15 mm | 40 mm | 10 mm | L | 904,00 € | ||
| BAUA-020-SSTV-D0 | 20 mm | 40 mm | 15 mm | T | 982,10 € | ||
| BAMA-020-SSTV-D0 | 20 mm | 40 mm | 15 mm | L | 982,10 € | ||
| BAUA-025-SSTV-D0 | 25 mm | 46 mm | 20 mm | T | 1.012,00 € | ||
| BAMA-025-SSTV-D0 | 25 mm | 46 mm | 20 mm | L | 1.012,00 € | ||
| BAUA-032-SSTV-D0 | 32 mm | 58 mm | 25 mm | T | 1.308,40 € | ||
| BAMA-032-SSTV-D0 | 32 mm | 58 mm | 25 mm | L | 1.308,40 € | ||
| BAUA-040-SSTV-D0 | 40 mm | 71 mm | 32 mm | T | 1.526,00 € | ||
| BAMA-040-SSTV-D0 | 40 mm | 71 mm | 32 mm | L | 1.526,00 € | ||
| BAUA-050-SSTV-D0 | 50 mm | 82 mm | 40 mm | T | 1.678,00 € | ||
| BAMA-050-SSTV-D0 | 50 mm | 82 mm | 40 mm | L | 1.678,00 € | ||
| BAUA-065-SSTV-D0 | 65 mm | 106 mm | 50,2 mm | T | 3.063,60 € | ||
| BAMA-065-SSTV-D0 | 65 mm | 106 mm | 50,2 mm | L | 3.063,60 € | ||
| BAUA-080-SSTV-D0 | 80 mm | 122 mm | 64 mm | T | 3.920,40 € | ||
| BAMA-080-SSTV-D0 | 80 mm | 122 mm | 64 mm | L | 3.920,40 € | ||
| BAUA-100-SSTV-D0 | 100 mm | 152 mm | 76 mm | T | 5.341,00 € | ||
| BAMA-100-SSTV-D0 | 100 mm | 152 mm | 76 mm | L | 5.341,00 € |
