Flanged ball valves - pneumatically operated

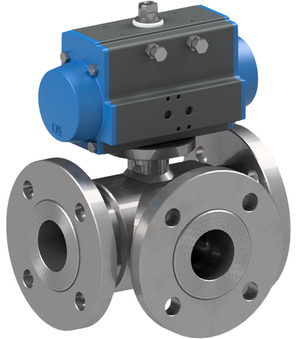

Flanged ball valve with pneumatic actuator Series BA055, BA056
3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C
Data sheets, CAD files and further documents are available with the respective variant.
129Articles
Store guide
Other series
Flanged ball valve with pneumatic actuator Series BA040-D
Flanged ball valve with pneumatic actuator Series BA040-S
Flanged ball valve with pneumatic actuator Series BADA
Flanged ball valve with pneumatic actuator Series BADA
Flanged ball valve with pneumatic actuator Series BAEB, BAEA
Flanged ball valve with pneumatic actuator Series BAEB, BAEA
Flanged ball valve with pneumatic actuator Series BAMA, BAUA
Flanged ball valve with pneumatic actuator Series BAMA, BAUA
Flanged ball valve with pneumatic actuator Series BADA
Flanged ball valve with pneumatic actuator Series BADA
Flanged ball valve with pneumatic actuator Series BAEB, BAEA
Flanged ball valve with pneumatic actuator Series BAEB, BAEA
Flanged ball valve with pneumatic actuator Series BAMA, BAUA
Flanged ball valve with pneumatic actuator Series BAMA, BAUA
Flanged ball valve with pneumatic actuator Series BA055, BA056
Flanged ball valve with pneumatic actuator Series BA055, BA056
All prices exclude tax.
Grundversion
| Availability | Price | Quantity | |||||
|---|---|---|---|---|---|---|---|
BA056-10-D0
Specifications
|
10 mm | 120 mm | PN40 | T | 688,10 € | ||
BA055-10-D0
Specifications
|
10 mm | 120 mm | PN40 | L | 688,10 € | ||
BA056-15-D0
Specifications
|
15 mm | 130 mm | PN40 | T | 830,50 € | ||
BA055-15-D0
Specifications
|
15 mm | 130 mm | PN40 | L | 830,50 € | ||
BA056-20-D0
Specifications
|
20 mm | 140 mm | PN40 | T | 985,70 € | ||
BA055-20-D0
Specifications
|
20 mm | 140 mm | PN40 | L | 985,70 € | ||
BA056-25-D0
Specifications
|
25 mm | 150 mm | PN40 | T | 1.131,90 € | ||
BA055-25-D0
Specifications
|
25 mm | 150 mm | PN40 | L | 1.131,90 € | ||
BA056-32-D0
Specifications
|
32 mm | 180 mm | PN40 | T | 1.726,20 € | ||
BA055-32-D0
Specifications
|
32 mm | 180 mm | PN40 | L | 1.726,20 € | ||
BA056-40-D0
Specifications
|
40 mm | 200 mm | PN40 | T | 2.149,20 € | ||
BA055-40-D0
Specifications
|
40 mm | 200 mm | PN40 | L | 2.149,20 € | ||
BA056-50-D0
Specifications
|
50 mm | 220 mm | PN40 | T | 2.650,30 € | ||
BA055-50-D0
Specifications
|
50 mm | 220 mm | PN40 | L | 2.650,30 € | ||
BA056-65-D0
Specifications
|
65 mm | 240 mm | PN16 | T | 3.309,90 € | ||
BA055-65-D0
Specifications
|
65 mm | 240 mm | PN16 | L | 3.309,90 € | ||
BA056-80-D0
Specifications
|
80 mm | 260 mm | PN16 | T | 5.284,50 € | ||
BA055-80-D0
Specifications
|
80 mm | 260 mm | PN16 | L | 5.284,50 € | ||
BA056-100-D0
Specifications
|
100 mm | 300 mm | PN16 | T | 7.789,80 € | ||
BA055-100-D0
Specifications
|
100 mm | 300 mm | PN16 | L | 7.789,80 € |
