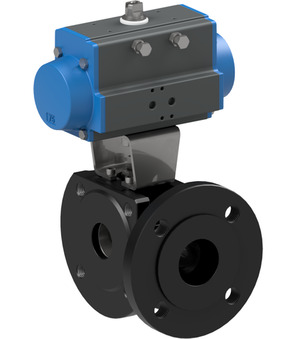

Flanged ball valve with pneumatic actuator Series BAMA, BAUA

3-way-type; Sealing on two sides; Pressure inlet just in front; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Reduced bore; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Pressure range 0...16bar
Flanschkugelhahn mit Druckluftdrehantrieb Serie BAMA, BAUA Flanschkugelhahn mit Druckluftdrehantrieb Serie BAMA, BAUA
Grundversion
DN Length DN ball Ball Voltage Design Type Sequence
15 mm 40 mm 10 mm T - - BAUA-015-CITV-D0 25220000
15 mm 40 mm 10 mm T - - BAUA-015-CITV-D0B 25220002
15 mm 40 mm 10 mm L - - BAMA-015-CITV-D0 25220010
15 mm 40 mm 10 mm L - - BAMA-015-CITV-D0B 25220012
20 mm 40 mm 15 mm T - - BAUA-020-CITV-D0 25220020
20 mm 40 mm 15 mm L - - BAMA-020-CITV-D0 25220028
25 mm 46 mm 20 mm T - - BAUA-025-CITV-D0 25220036
25 mm 46 mm 20 mm L - - BAMA-025-CITV-D0 25220044
32 mm 58 mm 25 mm T - - BAUA-032-CITV-D0 25220052
32 mm 58 mm 25 mm L - - BAMA-032-CITV-D0 25220060
40 mm 71 mm 32 mm T - - BAUA-040-CITV-D0 25220068
40 mm 71 mm 32 mm L - - BAMA-040-CITV-D0 25220076
50 mm 82 mm 40 mm T - - BAUA-050-CITV-D0 25220084
50 mm 82 mm 40 mm L - - BAMA-050-CITV-D0 25220092
65 mm 106 mm 50,2 mm T - - BAUA-065-CITV-D0 25220100
65 mm 106 mm 50,2 mm L - - BAMA-065-CITV-D0 25220108
80 mm 122 mm 64 mm T - - BAUA-080-CITV-D0 25220116
80 mm 122 mm 64 mm L - - BAMA-080-CITV-D0 25220124
100 mm 152 mm 76 mm T - - BAUA-100-CITV-D0 25220132
100 mm 152 mm 76 mm L - - BAMA-100-CITV-D0 25220140
Varianten
DN Length DN ball Ball Voltage Design Type Sequence
15 mm 40 mm 10 mm T 230V/50-60Hz Standard BAUA-015-CITV-D0B-ABS51-C001-22-C002-31-6 25220003
15 mm 40 mm 10 mm T 230V/50-60Hz With integrated LED-yellow and VDR BAUA-015-CITV-D0B-ABS51-C001-22-C002-31-LV-1 25220004
15 mm 40 mm 10 mm T 230V/50-60Hz With integrated LED-yellow, VDR and PVC-cable (2 m) BAUA-015-CITV-D0B-ABS51-C001-22-C002-31-LVCV20-1 25220005
15 mm 40 mm 10 mm T 24VDC / 48V/50-60Hz Standard BAUA-015-CITV-D0B-ABS51-C001-03-C002-31-6 25220006
15 mm 40 mm 10 mm T 24VDC / 48V/50-60Hz With integrated LED-yellow and VDR BAUA-015-CITV-D0B-ABS51-C001-03-C002-31-LV-2 25220007
15 mm 40 mm 10 mm T 24VDC / 48V/50-60Hz With integrated LED-yellow, VDR and PVC-cable (2 m) BAUA-015-CITV-D0B-ABS51-C001-03-C002-31-LVCV20-2 25220008
15 mm 40 mm 10 mm L 230V/50-60Hz Standard BAMA-015-CITV-D0B-ABS51-C001-22-C002-31-6 25220013
15 mm 40 mm 10 mm L 230V/50-60Hz With integrated LED-yellow and VDR BAMA-015-CITV-D0B-ABS51-C001-22-C002-31-LV-1 25220014
15 mm 40 mm 10 mm L 230V/50-60Hz With integrated LED-yellow, VDR and PVC-cable (2 m) BAMA-015-CITV-D0B-ABS51-C001-22-C002-31-LVCV20-1 25220015
15 mm 40 mm 10 mm L 24VDC / 48V/50-60Hz Standard BAMA-015-CITV-D0B-ABS51-C001-03-C002-31-6 25220016
15 mm 40 mm 10 mm L 24VDC / 48V/50-60Hz With integrated LED-yellow and VDR BAMA-015-CITV-D0B-ABS51-C001-03-C002-31-LV-2 25220017
15 mm 40 mm 10 mm L 24VDC / 48V/50-60Hz With integrated LED-yellow, VDR and PVC-cable (2 m) BAMA-015-CITV-D0B-ABS51-C001-03-C002-31-LVCV20-2 25220018
20 mm 40 mm 15 mm T 230V/50-60Hz Standard BAUA-020-CITV-D0-ABS51-C001-22-C002-31-6 25220021
20 mm 40 mm 15 mm T 230V/50-60Hz With integrated LED-yellow and VDR BAUA-020-CITV-D0-ABS51-C001-22-C002-31-LV-1 25220022
20 mm 40 mm 15 mm T 230V/50-60Hz With integrated LED-yellow, VDR and PVC-cable (2 m) BAUA-020-CITV-D0-ABS51-C001-22-C002-31-LVCV20-1 25220023
20 mm 40 mm 15 mm T 24VDC / 48V/50-60Hz Standard BAUA-020-CITV-D0-ABS51-C001-03-C002-31-6 25220024
20 mm 40 mm 15 mm T 24VDC / 48V/50-60Hz With integrated LED-yellow and VDR BAUA-020-CITV-D0-ABS51-C001-03-C002-31-LV-2 25220025
20 mm 40 mm 15 mm T 24VDC / 48V/50-60Hz With integrated LED-yellow, VDR and PVC-cable (2 m) BAUA-020-CITV-D0-ABS51-C001-03-C002-31-LVCV20-2 25220026
20 mm 40 mm 15 mm L 230V/50-60Hz Standard BAMA-020-CITV-D0-ABS51-C001-22-C002-31-6 25220029
20 mm 40 mm 15 mm L 230V/50-60Hz With integrated LED-yellow and VDR BAMA-020-CITV-D0-ABS51-C001-22-C002-31-LV-1 25220030
