STASTO Allgemeine Preisliste (EUR)
BUW6-100-DSE-D22-EB0X02

BUW6-100-DSE-D22-EB0X02

BUW6-100-DSE-D22

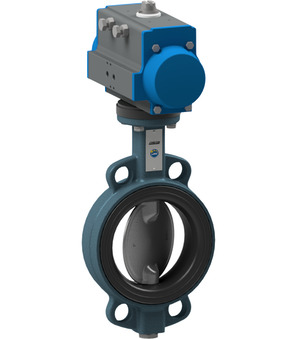

Butterfly valve with pneumatic actuator Series BUW6-DSE-D2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 100mm; Length 52mm; Actuator PAD085
EB0X02
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 100mA/24VDC; Switch type Crouzet 831618; Contact material Alloy of gold; Material of case Plastic

Absperrklappe mit Druckluftdrehantrieb Serie BUW6-DSE-D2
Absperrklappe mit Druckluftdrehantrieb Serie BUW6-DSE-D2
Absperrklappe mit Druckluftdrehantrieb Serie BUW6-DSE-D2
Intrastat No.: 84818085
Country of origin: Italy
Weight: 9.948 Kg
Short Itemnumber: BUW6100DSED22EB0X02
https://www.stasto.eu/web/image/product.template/218182/image_1920?unique=406672f

BUW6-100-DSE-D22
butterfly valve with pneumatic actuator series BUW6-DSE-D2; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 100mm; length 52mm; actuator PAD085
EB0X02
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 100mA/24VDC; switch type Crouzet 831618; contact material alloy of gold; material of case plastic

723,80 € 723.8 EUR 723,80 €

Not Available For Sale

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
DN 100 mm
Length 52 mm
Switch type Crouzet 831618
All specifications (7)
Documents
Data sheets, drawings and CAD files
Pressure range 0...10 bar
DN 100 mm
Length 52 mm
Switch type Crouzet 831618
Contact material Alloy of gold
Material of case Plastic
Brand STASTO

BUW6-100-DSE-D22-EB0X02

Documents

7 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

2

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

2
Danish / Dansk
ZIP

Data Sheets

2

CAD / 3D

2
German / Deutsch
ZIP

Data Sheets

2

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

2
Greek / Ελληνικά
ZIP

Data Sheets

2

CAD / 3D

2
English
ZIP

Data Sheets

2

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

2
Spanish / Español
ZIP

Data Sheets

2

CAD / 3D

2
Finnish / Suomi
ZIP

Data Sheets

2

CAD / 3D

2
French / Français
ZIP

Data Sheets

2

CAD / 3D

2
Croatian / hrvatski jezik
ZIP

Data Sheets

2

CAD / 3D

2
Hungarian / Magyar
ZIP

Data Sheets

2

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

2
Italian / Italiano
ZIP

Data Sheets

2

CAD / 3D

2
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

2

CAD / 3D

2
Dutch / Nederlands
ZIP

Data Sheets

2

CAD / 3D

2
Polish / Język polski
ZIP

Data Sheets

2

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

2
Romanian / română
ZIP

Data Sheets

2

CAD / 3D

2
Slovenian / slovenščina
ZIP

Data Sheets

2

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

2
Serbian (Latin) / srpski
ZIP

Data Sheets

2

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

2
Swedish / Svenska
ZIP

Data Sheets

2

CAD / 3D

2
Butterfly valve with pneumatic actuator BUW6-100-DSE-D22
BUW6-100-DSE-D22 x 1.0 Pcs
Butterfly valve with pneumatic actuator BUW6-100-DSE-D22
Butterfly valve with pneumatic actuator Series BUW6-DSE-D2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 100mm; Length 52mm; Actuator PAD085
EB0X02
EB0X02 x 1.0 Pcs
EB0X02
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 100mA/24VDC; Switch type Crouzet 831618; Contact material Alloy of gold; Material of case Plastic
