Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar
Butterfly valve with pneumatic actuator Series BUW6-DE-D2 -

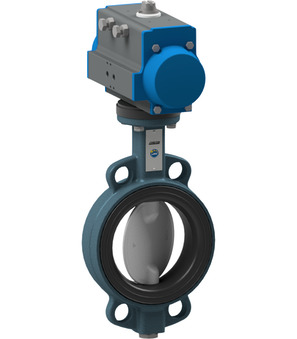

Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10barButterfly valve with pneumatic actuator Series BUW6-DE-S2
-
Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar
Butterfly valve with pneumatic actuator Series BUW6-DSE-D2 -
Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar
Butterfly valve with pneumatic actuator Series BUW6-DSE-S2 -
Wafer type; Length According to EN558−1R20; For abrasive medias (e.g. sand, cement, etc.); Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...6bar
Butterfly valve with pneumatic actuator Series BUW2-DSC-D3 -
Wafer type; Length According to EN558−1R20; For abrasive medias (e.g. sand, cement, etc.); Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...6bar
Butterfly valve with pneumatic actuator Series BUW2-DSC-S3 -
Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar
Butterfly valve with pneumatic actuator Series BULG-D, BULC-D -
Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar

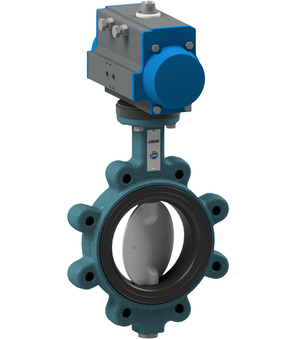

Butterfly valve with pneumatic actuator Series BULG-S, BULC-S -
Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar
Butterfly valve with pneumatic actuator Series BULG-DSE-D, BULC-DSE-D -
Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar
Butterfly valve with pneumatic actuator Series BULG-S, BULC-S -
Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Nominal flange pressure PN10/16/25/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C; Pressure range 0...25bar
Butterfly valve with pneumatic actuator Series BUW9-CSIS-D4 -
Wafer type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Nominal flange pressure PN10/16/25/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C; Pressure range 0...25bar
Butterfly valve with pneumatic actuator Series BUW9-SSIS-D4
Butterfly valves - pneumatically operated
Butterfly valve with pneumatic actuator Series BUW6-DE-D2
Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar
| DN | Length | Pressure range | Disc | Switch type | Contact material | Material of case | Voltage | Design | Type | Sequence |
|---|---|---|---|---|---|---|---|---|---|---|
| 50 mm | 43 mm | 0...10 bar | Zinc plated steel | - | - | - | - | - | BUW6-050-DUE-D22 | 31230000 |
| 50 mm | 43 mm | 0...10 bar | Zinc plated steel | - | - | - | - | - | BUW6-050-DUN-D22 | 31230001 |
| 65 mm | 46 mm | 0...10 bar | Zinc plated steel | - | - | - | - | - | BUW6-065-DUE-D22 | 31230009 |
| 80 mm | 46 mm | 0...10 bar | Zinc plated steel | - | - | - | - | - | BUW6-080-DUE-D22 | 31230017 |
| DN | Length | Pressure range | Disc | Switch type | Contact material | Material of case | Voltage | Design | Type | Sequence |
|---|---|---|---|---|---|---|---|---|---|---|
| 50 mm | 43 mm | 0...10 bar | Zinc plated steel | - | - | - | 24VDC / 48V/50-60Hz | Standard | BUW6-050-DUE-D22-ABS54-C001-03-C002-31-6 | 31230002 |
| 50 mm | 43 mm | 0...10 bar | Zinc plated steel | - | - | - | 24VDC / 48V/50-60Hz | With integrated LED-yellow and VDR | BUW6-050-DUE-D22-ABS54-C001-03-C002-31-LV-2 | 31230003 |
| 50 mm | 43 mm | 0...10 bar | Zinc plated steel | - | - | - | 24VDC / 48V/50-60Hz | With integrated LED-yellow, VDR and PVC-cable (2 m) | BUW6-050-DUE-D22-ABS54-C001-03-C002-31-LVCV20-2 | 31230004 |
| 50 mm | 43 mm | 0...10 bar | Zinc plated steel | - | - | - | 230V/50-60Hz | Standard | BUW6-050-DUE-D22-ABS54-C001-22-C002-31-6 | 31230005 |
| 50 mm | 43 mm | 0...10 bar | Zinc plated steel | - | - | - | 230V/50-60Hz | With integrated LED-yellow and VDR | BUW6-050-DUE-D22-ABS54-C001-22-C002-31-LV-1 | 31230006 |
| 50 mm | 43 mm | 0...10 bar | Zinc plated steel | - | - | - | 230V/50-60Hz | With integrated LED-yellow, VDR and PVC-cable (2 m) | BUW6-050-DUE-D22-ABS54-C001-22-C002-31-LVCV20-1 | 31230007 |
| 50 mm | 43 mm | 0...10 bar | Zinc plated steel | Crouzet 831613 | Silver-nickel | Plastic | - | - | BUW6-050-DUE-D22-EB0X01 | 31230008 |
| 65 mm | 46 mm | 0...10 bar | Zinc plated steel | - | - | - | 24VDC / 48V/50-60Hz | Standard | BUW6-065-DUE-D22-ABS54-C001-03-C002-31-6 | 31230010 |
| 65 mm | 46 mm | 0...10 bar | Zinc plated steel | - | - | - | 24VDC / 48V/50-60Hz | With integrated LED-yellow and VDR | BUW6-065-DUE-D22-ABS54-C001-03-C002-31-LV-2 | 31230011 |
| 65 mm | 46 mm | 0...10 bar | Zinc plated steel | - | - | - | 24VDC / 48V/50-60Hz | With integrated LED-yellow, VDR and PVC-cable (2 m) | BUW6-065-DUE-D22-ABS54-C001-03-C002-31-LVCV20-2 | 31230012 |
| 65 mm | 46 mm | 0...10 bar | Zinc plated steel | - | - | - | 230V/50-60Hz | Standard | BUW6-065-DUE-D22-ABS54-C001-22-C002-31-6 | 31230013 |
| 65 mm | 46 mm | 0...10 bar | Zinc plated steel | - | - | - | 230V/50-60Hz | With integrated LED-yellow and VDR | BUW6-065-DUE-D22-ABS54-C001-22-C002-31-LV-1 | 31230014 |
| 65 mm | 46 mm | 0...10 bar | Zinc plated steel | - | - | - | 230V/50-60Hz | With integrated LED-yellow, VDR and PVC-cable (2 m) | BUW6-065-DUE-D22-ABS54-C001-22-C002-31-LVCV20-1 | 31230015 |
| 80 mm | 46 mm | 0...10 bar | Zinc plated steel | - | - | - | 24VDC / 48V/50-60Hz | Standard | BUW6-080-DUE-D22-ABS54-C001-03-C002-31-6 | 31230018 |
| 80 mm | 46 mm | 0...10 bar | Zinc plated steel | - | - | - | 24VDC / 48V/50-60Hz | With integrated LED-yellow and VDR | BUW6-080-DUE-D22-ABS54-C001-03-C002-31-LV-2 | 31230019 |
| 80 mm | 46 mm | 0...10 bar | Zinc plated steel | - | - | - | 24VDC / 48V/50-60Hz | With integrated LED-yellow, VDR and PVC-cable (2 m) | BUW6-080-DUE-D22-ABS54-C001-03-C002-31-LVCV20-2 | 31230020 |
