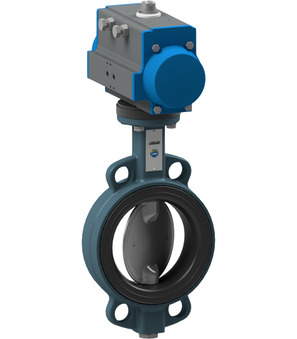

Butterfly valve with pneumatic actuator BUW6-100-DSE-D22-ABS27-C001-22-C002-31-LV-2-EB0X01

Butterfly valve with pneumatic actuator BUW6-100-DSE-D22-ABS27-C001-22-C002-31-LV-2-EB0X01

Butterfly valve with pneumatic actuator Series BUW6-DSE-D2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 100mm; Length 52mm; Actuator PAD085; assembled 5/3 NAMUR valve; Voltage 230VAC; Mounted limit switch box EB0X01

Absperrklappe mit Druckluftdrehantrieb Serie BUW6-DSE-D2
Absperrklappe mit Druckluftdrehantrieb Serie BUW6-DSE-D2
Absperrklappe mit Druckluftdrehantrieb Serie BUW6-DSE-D2
Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 10.368 Kg
Short Itemnumber: BUW6100DSED22ABS27C00122C00231LV2EB0X01
https://www.stasto.eu/web/image/product.template/240537/image_1920?unique=06e4003

Butterfly valve with pneumatic actuator Series BUW6-DSE-D2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 50mm; Length 43mm; Actuator PAD063

898,80 € 898.8 EUR 898,80 €

Not Available For Sale

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
DN 100 mm
Length 52 mm
Voltage 230V/50-60Hz
All specifications (9)
Documents
Data sheets, drawings and CAD files
Pressure range 0...10 bar
DN 100 mm
Length 52 mm
Voltage 230V/50-60Hz
Design With integrated LED-yellow and VDR
Switch type Crouzet 831613
Contact material Silver-nickel
Material of case Plastic
Brand STASTO

BUW6-100-DSE-D22-ABS27-C001-22-C002-31-LV-2-EB0X01

Documents

14 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

4

CAD / 3D

4
Danish / Dansk
ZIP

Data Sheets

4

CAD / 3D

4
German / Deutsch
ZIP

Data Sheets

4

Assembly and Operating Instructions

2

Declarations of Conformity

4

CAD / 3D

4
Greek / Ελληνικά
ZIP

Data Sheets

4

CAD / 3D

4
English
ZIP

Data Sheets

4

Assembly and Operating Instructions

2

Declarations of Conformity

4

CAD / 3D

4
Spanish / Español
ZIP

Data Sheets

4

CAD / 3D

4
Finnish / Suomi
ZIP

Data Sheets

4

CAD / 3D

4
French / Français
ZIP

Data Sheets

4

CAD / 3D

4
Croatian / hrvatski jezik
ZIP

Data Sheets

4

CAD / 3D

4
Hungarian / Magyar
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

4

CAD / 3D

4
Italian / Italiano
ZIP

Data Sheets

4

CAD / 3D

4
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

4

CAD / 3D

4
Dutch / Nederlands
ZIP

Data Sheets

4

CAD / 3D

4
Polish / Język polski
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

4

CAD / 3D

4
Romanian / română
ZIP

Data Sheets

4

CAD / 3D

4
Slovenian / slovenščina
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

4

CAD / 3D

4
Serbian (Latin) / srpski
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

4

CAD / 3D

4
Swedish / Svenska
ZIP

Data Sheets

4

CAD / 3D

4
Butterfly valve with pneumatic actuator BUW6-100-DSE-D22
BUW6-100-DSE-D22 x 1.0 Pcs
Butterfly valve with pneumatic actuator BUW6-100-DSE-D22
Butterfly valve with pneumatic actuator Series BUW6-DSE-D2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 100mm; Length 52mm; Actuator PAD085
ABS27 x 1.0 Pcs
ABS27
Mounted 5/3 NAMUR valve, V46L2-11 for actuators DA52-DA270, actuation: electr./electr. centre position blocked
Add to Cart
C001-22
C001-22 x 2.0 Pcs
C001-22
Coil Type C001; Connector size 22mm; Voltage 230V/50-60Hz
C002-31-LV-2
C002-31-LV-2 x 2.0 Pcs
C002-31-LV-2
Connector; Connector size 22mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC
EB0X01
EB0X01 x 1.0 Pcs
EB0X01
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831613; Contact material Silver-nickel; Material of case Plastic
