Butterfly valve with manual gear box Series BUW4-DSD-G-DVGW Store

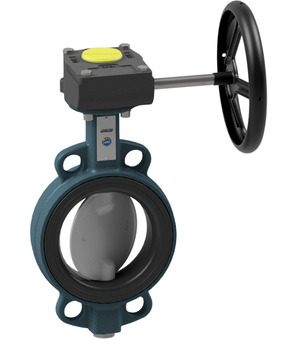

Butterfly valve with manual gear box BUW4-350-DSD-G

Name: Butterfly valve with manual gear box BUW4-350-DSD-G
Brand: STASTO
SKU: BUW4-350-DSD-G
Price: 2553.2 EUR
Availability: InStock

Butterfly valve with manual gear box Series BUW4-DSD-G-DVGW; Wafer type; DVGW-gas-approved; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR ; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; DN 350mm; Length 78mm; Pressure range 0...10bar

Intrastat No.: 84818085
Country of origin: Italy
Weight: 53.062 Kg
Short Itemnumber: BUW4350DSDG

butterfly valve with manual gear box series BUW4-DSD-G-DVGW; wafer type; DVGW-gas-approved; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR ; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+60°C; DN 350mm; length 78mm; pressure range 0...10bar

2.553,20 € 2553.2 EUR 2.553,20 €

DN
- 350 mm
Length
- 78 mm
Pressure range
- 0...10 bar

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	350 mm
Length	78 mm
pressure
Pressure range	0...10 bar

BUW4-350-DSD-B x 1.0

BUW4-350-DSD-B

Butterfly valve with bare shaft; Wafer type; DVGW-gas-approved; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR ; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; Pressure range 0...10bar; DN 350mm; Length 78mm

Add to Cart
