Butterfly valve with manual gear box Series BUW4-DSD-G-DVGW Store

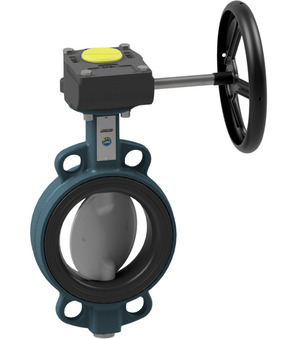

Butterfly valve with manual gear box BUW4-300-DSD-G

Name: Butterfly valve with manual gear box BUW4-300-DSD-G
Brand: STASTO
SKU: BUW4-300-DSD-G
Price: 1596.1 EUR
Availability: InStock

Butterfly valve with manual gear box Series BUW4-DSD-G-DVGW; Wafer type; DVGW-gas-approved; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR ; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; DN 300mm; Length 78mm; Pressure range 0...10bar

Intrastat No.: 84818085
Country of origin: Italy
Weight: 40.628 Kg
Short Itemnumber: BUW4300DSDG

1.596,10 € 1596.1 EUR 1.596,10 €

DN
- 300 mm
Length
- 78 mm
Pressure range
- 0...10 bar

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	300 mm
Length	78 mm
pressure
Pressure range	0...10 bar

BUW4-300-DSD-B x 1.0

Butterfly valve with bare shaft BUW4-300-DSD-B

Butterfly valve with bare shaft Series BUW6-DSD-B, BUW4-DSD-B; Wafer type; DVGW-gas-approved;Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; DN 300mm; Length 78mm; Pressure range 0...10bar
