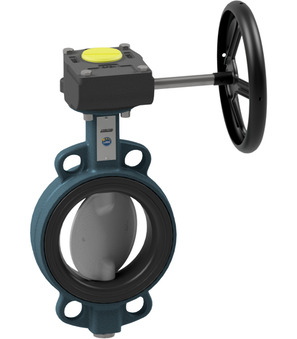

Butterfly valve with manual gear box BUW4-400-DSD-G

Butterfly valve with manual gear box BUW4-400-DSD-G

Butterfly valve with manual gear box Series BUW4-DSD-G-DVGW; Wafer type; DVGW-gas-approved; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR ; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; DN 400mm; Length 102mm; Pressure range 0...10bar

Intrastat No.: 84818085
Country of origin: Italy
Weight: 92.022 Kg
Short Itemnumber: BUW4400DSDG

Scope of delivery

butterfly valve with gear box
https://www.stasto.eu/web/image/product.template/107446/image_1920?unique=88e0a19

butterfly valve with manual gear box series BUW4-DSD-G-DVGW; wafer type; DVGW-gas-approved; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR ; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+60°C; DN 400mm; length 102mm; pressure range 0...10bar

3.385,20 € 3385.2 EUR 3.385,20 €

Not Available For Sale

excl. tax
  • DN
  • Length
  • Pressure range

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
DN 400 mm
Length 102 mm
Pressure range 0...10 bar
DN 400 mm
Length 102 mm
BUW4-400-DSD-B x 1.0 Pcs
BUW4-400-DSD-B
Butterfly valve with bare shaft; Wafer type; DVGW-gas-approved; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR ; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; Pressure range 0...10bar; DN 400mm; Length 102mm
GB02-12/4012-01
GB02-12/4012-01 x 1.0 Pcs
GB02-12/4012-01
Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 2000Nm; Flange ISO5211 F12; Diameter/Key 40/12mm
