BA051-150-S0-A-01-03700000074-3900000085-WST-HVB

Price.

7.253,60 €
STASTO Allgemeine Preisliste (EUR)
Flanged ball valve with pneumatic actuator Series BA051-S0 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Flanged ball valve with pneumatic actuator Series BA051-S0
  6. BA051-150-S0-A-01-03700000074-3900000085-WST-HVB
BA051-150-S0-A-01-03700000074-3900000085-WST-HVB

BA051-150-S0-A-01-03700000074-3900000085-WST-HVB

BA051-150-S0-A-01

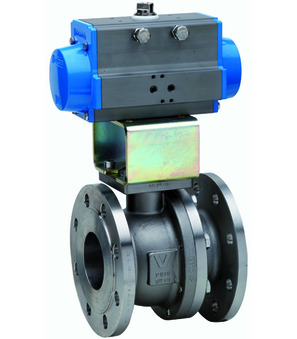

Flanged ball valve with pneumatic actuator Series BA051; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 6...8bar; Medium temperature -20...+160°C; Nominal diameter 150mm; Pressure range 0...16bar; Flange PN16; Length 350mm; Actuator PAS1606
03700000074
5/2-way valve; According to NAMUR; Pilot-operated; Actuation Electrical/spring; Connector size 22mm; Working ports 1/4"; Exhaust ports 1/8"; Pressure range 2-10bar; Flow rate 700Nl/min; Voltage 24VDC; With connector
3900000085
Mounted limit switch box; IP67; 2 Micro switches; Suitable for Actuators PAD/PAS52-100; Switching capacity; SPDT Max 5A 250VAC; 0,6A 125VDC; 3A; 24VDC Min. 50mA 24VDC; Material of case Aluminum; Cover Plastic
WST-HVB
Mounting bridge Universal; Stainless steel; For actuator PAD/PAS052-270

Intrastat No.: 84818081
Country of origin: Italy
Weight: 103.39 Kg
Short Itemnumber:BA051150S0A01037000000743900000085WSTHVB
https://www.stasto.eu/web/image/product.template/196014/image_1920?unique=3970b0b

BA051-150-S0-A-01
Flanged ball valve with pneumatic actuator Series BA051; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body, Ball AISI 316; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 6...8bar; Medium temperature -20...+160°C; Nominal diameter 150mm; Pressure range 0...16bar; Flange PN16; Length 350mm; Actuator PAS1606
03700000074
5/2-way valve; According to NAMUR; Pilot-operated; Actuation Electrical/spring; Connector size 22mm; Working ports 1/4"; Exhaust ports 1/8"; Pressure range 2-10bar; Flow rate 700Nl/min; Voltage 24VDC; With connector
3900000085
Mounted limit switch box; IP67; 2 Micro switches; Suitable for Actuators PAD/PAS52-100; Switching capacity; SPDT Max 5A 250VAC; 0,6A 125VDC; 3A; 24VDC Min. 50mA 24VDC; Material of case Aluminum; Cover Plastic
WST-HVB
Mounting bridge Universal; Stainless steel; For actuator PAD/PAS052-270

7.253,60 € 7253.6 EUR 7.253,60 €

price on request

  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
DN 125 mm
Length 325 mm
Flange PN16
design
Design ATEX
pressure
Pressure range 0...16 bar
characteristics
Actuator PAS1605
