BA051-150-S0-A3C-ABS51-C001-03-C002-31-6-EB0X01-C0

Name: BA051-150-S0-A3C-ABS51-C001-03-C002-31-6-EB0X01-C0
SKU: BA051-150-S0-A3C-ABS51-C001-03-C002-31-6-EB0X01-C0
Price: 7811.9 EUR
Availability: InStock

BA051-150-S0-A3C

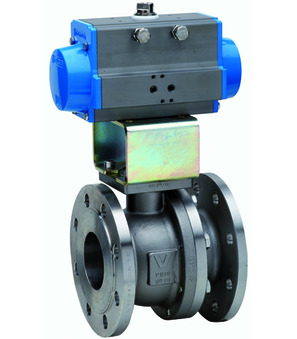

Flanged ball valve with pneumatic actuator Series BA051-S0-A3C; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 150mm; Pressure range 0...16bar; Flange PN16; Length 350mm; Actuator PAS2005; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
ABS51-C001-03-C002-31-6
ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
EB0X01-C0
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831613; Contact material Silver-nickel; Material of case Plastic; With visual position indicator On/off

Intrastat No.: 84818081
Country of origin: Italy

Weight: 58.628 Kg
Short Itemnumber: BA051150S0A3CABS51C00103C002316EB0X01C0

BA051-150-S0-A3C
flanged ball valve with pneumatic actuator series BA051-S0-A3C; Fire-Safe/Antistatik according to ATEX/TA−Luft; length according to EN558−1R27; body, ball AISI 316; seals PTFE/Graphoil/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 150mm; pressure range 0...16bar; flange PN16; length 350mm; actuator PAS2005; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness
ABS51-C001-03-C002-31-6
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC
EB0X01-C0
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic; with visual position indicator on/off

7.811,90 € 7811.9 EUR 7.811,90 €

excl. tax

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...16 bar
DN	125 mm
Length	325 mm
Flange	PN16

All specifications (6)

Documents

Data sheets, drawings and CAD files

Pressure range	0...16 bar
DN	125 mm
Length	325 mm
Flange	PN16
Voltage	24VDC / 48V/50-60Hz
Design	ATEX

BA051-150-S0-A3C-ABS51-C001-03-C002-31-6-EB0X01-C0
