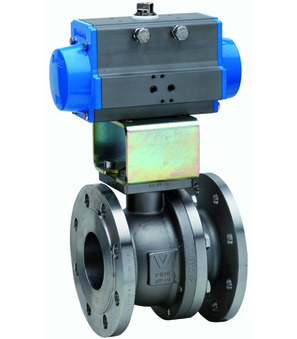

Flanged ball valve with pneumatic actuator BA051-150-S0-A-01

Flanged ball valve with pneumatic actuator BA051-150-S0-A-01

Flanged ball valve with pneumatic actuator Series BA051; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 6...8bar; Medium temperature -20...+160°C; Nominal diameter 150mm; Pressure range 0...16bar; Flange PN16; Length 350mm; Actuator PAS1606

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 102.17 Kg
Short Itemnumber: BA051150S0A01
https://www.stasto.eu/web/image/product.template/185425/image_1920?unique=7d94123

Flanged ball valve with pneumatic actuator Series BA051; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body, Ball AISI 316; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 6...8bar; Medium temperature -20...+160°C; Nominal diameter 150mm; Pressure range 0...16bar; Flange PN16; Length 350mm; Actuator PAS1606

6.872,70 € 6872.7 EUR 6.872,70 €

Not Available For Sale

excl. tax
  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
DN 125 mm
Flange PN16
Length 325 mm
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...16 bar
DN 125 mm
Flange PN16
Length 325 mm
Design ATEX

BA051-150-S0-A-01

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Flanged ball valve BA051-150-LLD-A
BA051-150-LLD-A x 1.0 Pcs
Flanged ball valve BA051-150-LLD-A
Flanged ball valve Series BA051-A; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; With locking device; Nominal diameter 150mm; Pressure range 0...16bar; Flange PN16; Length 350mm
Pneumatic actuator PAS1606
PAS1606 x 1.0 Pcs
Pneumatic actuator PAS1606
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 160mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 6bar 239Nm
RI3554 x 1.0 Pcs
RI3554
Mounting bracket; F12-F10/F14; 27-30
