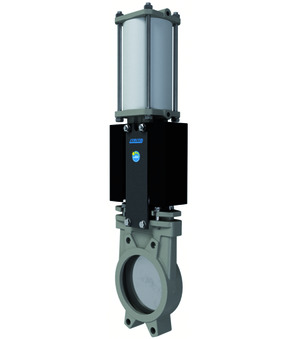

Knife gate valve with double acting actuator Series A1N; Wafer type; Body 1.4408; Gate 1.4401; Soft sealed PTFE; Packing PTFE; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -20...+180 °C; DN 300mm; Length 70mm; Pressure range 0...6bar
Country of origin: Spain
Weight: 9.23 Kg
Short Itemnumber: A1N2I47300
knife gate valve with double acting actuator series A1N; wafer type; body AISI 316; gate AISI 316; soft sealed PTFE; packing PTFE; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -20...+180 °C; DN 300mm; length 70mm; pressure range 0...6bar
Technical specifications
| Pressure range | 0...6 bar |
|---|---|
| DN | 300 mm |
| Length | 70 mm |
| Pressure range | 0...6 bar |
| DN | 300 mm |
| Length | 70 mm |
A1N2I4-7-300
