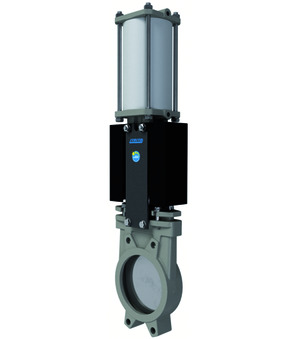

Knife gate valve with double acting actuator Series A1N; Wafer type; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 mechanical switches MSU01A; DN 80mm; Length 50mm; Pressure range 0...10bar
Country of origin: Spain
Weight: 3.43 Kg
Short Itemnumber: A1N2I2580PM
knife gate valve with double acting actuator series A1N; wafer type; body AISI 316; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90°C; prepared for 2 mechanical switches MSU01A; DN 80mm; length 50mm; pressure range 0...10bar
Technical specifications
| Pressure range | 0...10 bar |
|---|---|
| DN | 80 mm |
| Length | 50 mm |
| Pressure range | 0...10 bar |
| DN | 80 mm |
| Length | 50 mm |
A1N2I2-5-80-PM
