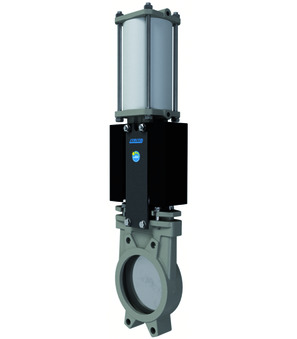

Knife gate valve with double acting actuator Series A1N; Wafer type; Body 1.4408; Gate 1.4401; Soft sealed PTFE; Packing PTFE; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -20...+180 °C; DN 200mm; Length 60mm; Pressure range 0…8bar
Country of origin: Spain
Weight: 2.04 Kg
Short Itemnumber: A1N2I47200
knife gate valve with double acting actuator series A1N; wafer type; body AISI 316; gate AISI 316; soft sealed PTFE; packing PTFE; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -20...+180 °C; DN 200mm; length 60mm; pressure range 0…8bar
Technical specifications
| Pressure range | 0...10 bar |
|---|---|
| Pressure range | 0...8 bar |
| DN | 200 mm |
| Length | 60 mm |
| Pressure range | 0...10 bar |
| Pressure range | 0...8 bar |
| DN | 200 mm |
| Length | 60 mm |
A1N2I4-7-200
Documents
Czech / Čeština
Data Sheets
1-
PDF
Datový list · nožové šoupátko s dvojčinným pneupohonem série A1N · CS
Data sheet 727 KB Updated 13/06/2026
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Plattenschieber mit doppeltwirkendem Pneumatikantrieb Serie A1N · DE
Data sheet 725 KB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · Knife gate valve with double acting actuator Series A1N · EN
Data sheet 723 KB Updated 13/06/2026
Hungarian / Magyar
Data Sheets
1-
PDF
Adatlap · tolózár kétoldali működésű munkahengerrel sorozat A1N · HU
Data sheet 726 KB Updated 13/06/2026
Polish / Język polski
Data Sheets
1-
PDF
Arkusz danych · zasuwy nożowe z napędem pneumatycznym dwustronnego działania Seria A1N · PL
Data sheet 728 KB Updated 13/06/2026
Slovenian / slovenščina
Data Sheets
1-
PDF
Podatkovni list · Ploščati ventil z dvosmernim pnevmatskim pogonom serija A1N · SL
Data sheet 726 KB Updated 13/06/2026
Serbian (Latin) / srpski
Data Sheets
1-
PDF
Tehnički list · nožasti zasun sa aktuatorom dvostrukog dejstva serije A1N · SRLATIN
Data sheet 725 KB Updated 13/06/2026
