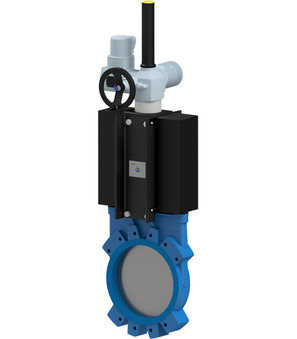

Knife gate valve with electric actuator T3EM2A2-5-400
knife gate valve with electric actuator series T3EM2A2-5; lug type; rising stem; housing steel WCB; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure PN16; unidirectional sealed; voltage 400V/3/50Hz; medium temperature -5...+90°C; DN 400mm; length 88,9mm; pressure range 0…10bar; actuator AUMA SA10.2; gear box
Intrastat No.: 84818061
Country of origin: Spain
Short Itemnumber: T3EM2A25400
Country of origin: Spain
Short Itemnumber: T3EM2A25400
knife gate valve with electric actuator series T3EM2A2-5; lug type; rising stem; housing steel WCB; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure PN16; unidirectional sealed; voltage 400V/3/50Hz; medium temperature -5...+90°C; DN 400mm; length 88,9mm; pressure range 0…10bar; actuator AUMA SA10.2; gear box
No Specifications
No spare parts are available for this product.
