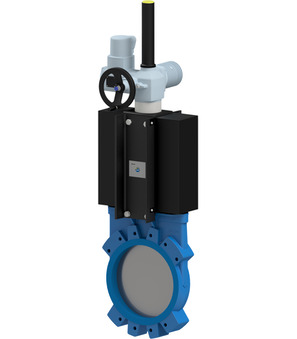

Knife gate valve with electric actuator AB1EM2I2-5-300-02
Knife gate valve with electric actuator Series AB1EM2H2-5-B; ATEX zone 2 and 22; Wafer type; Rising stem; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Sealed in both directions; Voltage 400V/3/50Hz; Medium temperature -5...+90°C; DN 300mm; Length 70mm; Pressure range 0…6bar; Actuator AUMA SAEx10.2
Intrastat No.: 84818061
Country of origin: Spain
Weight: 72.0 Kg
Short Itemnumber: AB1EM2I2530002
Country of origin: Spain
Weight: 72.0 Kg
Short Itemnumber: AB1EM2I2530002
knife gate valve with electric actuator series AB1EM2H2-5-B; ATEX zone 2 and 22; wafer type; rising stem; body AISI 316; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure PN10; sealed in both directions; voltage 400V/3/50Hz; medium temperature -5...+90°C; DN 300mm; length 70mm; pressure range 0…6bar; actuator AUMA SAEx10.2
| Design | ATEX |
No spare parts are available for this product.
