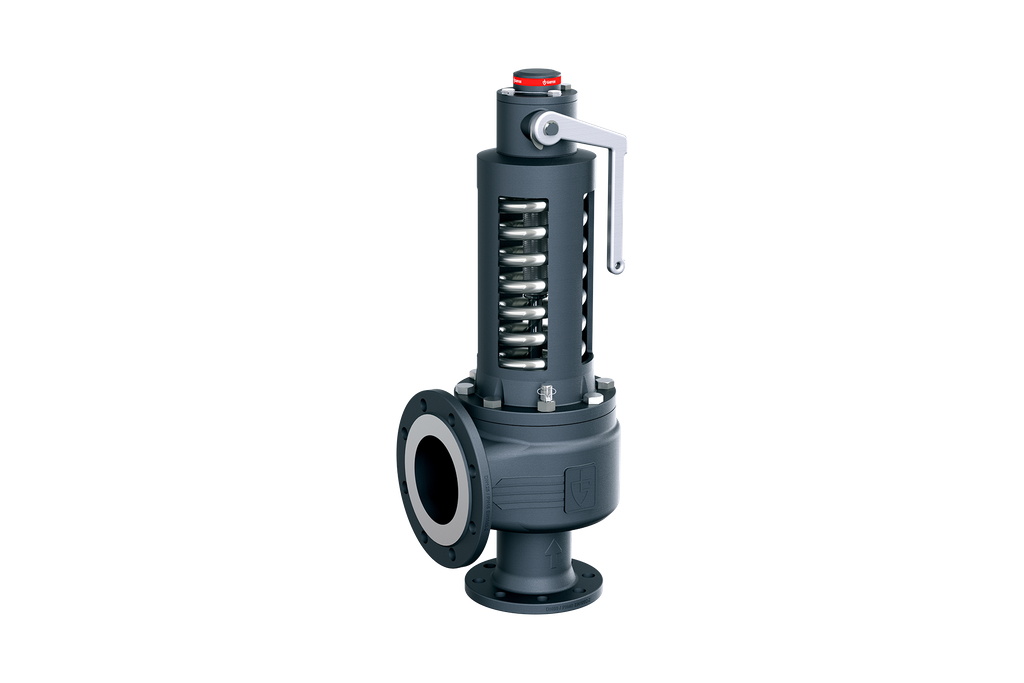

Safety valve; Gas-proof cover; With lifting lever; Body Ductile iron; Application: Liquids, Compressed air, gases, vapors; Inlet DN50/PN40; Outlet DN80/PN16; Seal PTFE; Medium temperature -60...+225°C; Set pressure 4bar; Incl. Inspection certificate EN-10204-3.1; For pressure, function and tightness
Country of origin: Germany
Weight: 26.0 Kg
Short Itemnumber: SV52504W454T3C
safety valve; gas-proof cover; with lifting lever; body ductile iron; application: liquids, compressed air, gases, vapors; inlet DN50/PN40; outlet DN80/PN16; seal PTFE; medium temperature -60...+225°C; set pressure 4bar; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness
Technical specifications
| Inlet | DN50/PN40 |
|---|---|
| Outlet | DN80/PN16 |
| Seal | PTFE |
| Set pressure | 4 bar |
| Inlet | DN50/PN40 |
| Outlet | DN80/PN16 |
| Seal | PTFE |
| Set pressure | 4 bar |
| Medium temperature | -60...+225 °C |
SV52-504W-45-4-T-3C
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Sicherheitsventil Serie SV52 · DE
Data sheet 18,3 MB Updated 29/07/2026
English
Data Sheets
1-
PDF
Data sheet · Safety valve Series SV52 · EN
Data sheet 18,4 MB Updated 29/07/2026
