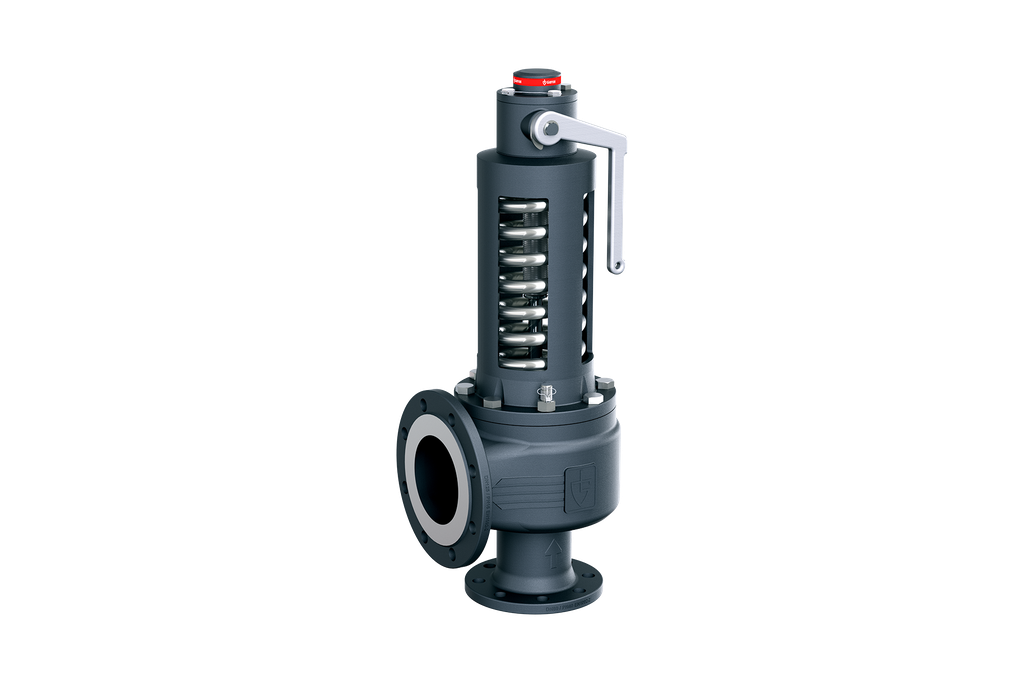

Safety valve; Gas-proof cover; With lifting lever; Body Ductile iron; Application: Liquids, Compressed air, gases, vapors; Inlet DN40/PN40; Outlet DN65/PN16; Metal sealing; Medium temperature -10...+350°C; Set pressure 10bar; Incl. Inspection certificate EN-10204-3.1; For pressure, function and tightness
Country of origin: Germany
Weight: 22.0 Kg
Short Itemnumber: SV52404W36103C
safety valve; gas-proof cover; with lifting lever; body ductile iron; application: liquids, compressed air, gases, vapors; inlet DN40/PN40; outlet DN65/PN16; metal sealing; medium temperature -10...+350°C; set pressure 10bar; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness
Technical specifications
| Inlet | DN40/PN40 |
|---|---|
| Outlet | DN65/PN16 |
| Seal | Metallic |
| Set pressure | 10 bar |
| Inlet | DN40/PN40 |
| Outlet | DN65/PN16 |
| Seal | Metallic |
| Set pressure | 10 bar |
| Medium temperature | -10...+350 °C |
SV52-404W-36-10-3C
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Sicherheitsventil Serie SV52 · DE
Data sheet 18,3 MB Updated 29/07/2026
English
Data Sheets
1-
PDF
Data sheet · Safety valve Series SV52 · EN
Data sheet 18,4 MB Updated 29/07/2026
