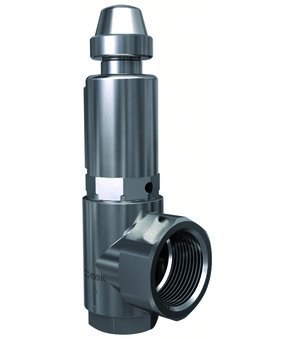

Safety valve 1/2"-1"-15,8-0,5-EPDM--40…170
Safety valve Series SV32; With twist lifting; Body Stainless steel AISI 316L; Cap Stainless steel AISI 316; Application: Compressed air, Non-toxic gases, vapors; Inlet G 1/2"; Outlet G 1"; DN 15,8mm; Set pressure 0,5bar; Seal EPDM; Medium temperature -40…170°C
Intrastat No.: 84814010
Country of origin: Germany
Weight: 0.43 Kg
Short Itemnumber: SV3212W15.80.5E
Country of origin: Germany
Weight: 0.43 Kg
Short Itemnumber: SV3212W15.80.5E
safety valve series SV32; with twist lifting; body stainless steel AISI 316L; cap stainless steel AISI 316; application: compressed air, non-toxic gases, vapors; inlet G 1/2"; outlet G 1"; DN 15,8mm; set pressure 0,5bar; seal EPDM; medium temperature -40…170°C
| dimension | |
|---|---|
| DN | 15,8 mm |
| Inlet G | 1/2" |
| Outlet | G 1" |
| materials | |
| Seal | EPDM |
| characteristics | |
| Set pressure | 0,5 bar |
| Medium temperature | -40...+170 °C |
No spare parts are available for this product.
