Safety valve SV32-12-15,8-11-E

Price.

1.113,00 €
STASTO Allgemeine Preisliste (EUR)
Safety valve Series SV32 Store
  1. Products
  2. Armatures
  3. Pressure regulators, safety valves and accessories
  4. Other materiales - A07
  5. Safety valve Series SV32
  6. SV32-12-15,8-11-E

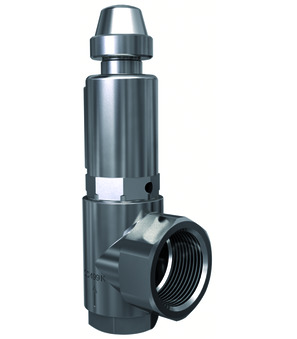

Safety valve SV32-12-15,8-11-E

Safety valve SV32-12-15,8-11-E

safety valve series SV32; with twist lifting; body stainless steel AISI 316L; cap stainless steel AISI 316; application: compressed air, non-toxic gases, vapors; inlet female thread G 1/2"; outlet female thread G 1/2"; DN 15,8mm; seal EPDM; medium temperature -40…170°C; set pressure 11bar

Intrastat No.: 84814010
Country of origin: Germany
Short Itemnumber:SV321215.811E
https://www.stasto.eu/web/image/product.template/234100/image_1920?unique=1a28827

safety valve series SV32; with twist lifting; body stainless steel AISI 316L; cap stainless steel AISI 316; application: compressed air, non-toxic gases, vapors; inlet female thread G 1/2"; outlet female thread G 1/2"; DN 15,8mm; seal EPDM; medium temperature -40…170°C; set pressure 11bar

1.113,00 € 1113.0 EUR 1.113,00 €

price on request

  • DN
  • Inlet G
  • Outlet
  • Seal
  • Set pressure
  • Medium temperature

This combination does not exist.

Availability:
Contact Us
dimension
DN 15,8 mm
Inlet G 1/2"
Outlet G 1"
materials
Seal EPDM
characteristics
Set pressure 6,5 bar
Medium temperature -40...+170 °C

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Safety valve Series SV32_EN.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Sicherheitsventil Serie SV32_DE.pdf
Download
No spare parts are available for this product.
