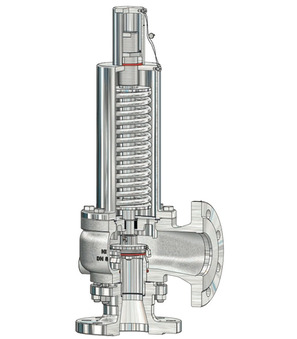

safety valve series SV10; for vapors, gases and liquids; body stainless steel AISI 316Ti; spring cover and outlet body stainless steel AISI 316Ti; inlet DN80/PN16; outlet DN80/PN16; DN 50mm; valve head C; seat seal AISI 316Ti; other seals PTFE; set pressure 4,95bar; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness; inspection certificate EN-10204-3.1; for material (inlet body)
Country of origin: Germany
Short Itemnumber: SV1080504.95D3E
safety valve series SV10; for vapors, gases and liquids; body stainless steel AISI 316Ti; spring cover and outlet body stainless steel AISI 316Ti; inlet DN80/PN16; outlet DN80/PN16; DN 50mm; valve head C; seat seal AISI 316Ti; other seals PTFE; set pressure 4,95bar; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness; inspection certificate EN-10204-3.1; for material (inlet body)
Technical specifications
| Inlet | DN80/PN16 |
|---|---|
| Outlet | DN80/PN16 |
| DN | 50 mm |
| Valve head | C |
| Inlet | DN80/PN16 |
| Outlet | DN80/PN16 |
| DN | 50 mm |
| Valve head | C |
| Seat seal | 1.4571 |
| Other seals | PTFE |
| Set pressure | 4,95 bar |
SV10-80-50-4,95-D-3E
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Sicherheitsventil Serie SV10 · DE
Data sheet 13,0 MB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · Safety valve Series SV10 · EN
Data sheet 13,1 MB Updated 13/06/2026
