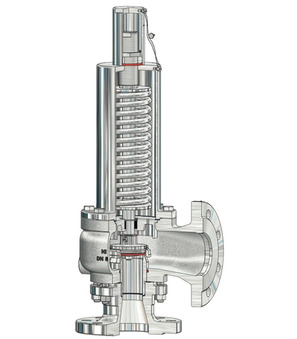

safety valve series SV10; for vapors, gases and liquids; body stainless steel AISI 316Ti; spring cover and outlet body stainless steel AISI 316Ti; inlet DN80/PN16; outlet DN80/PN16; DN 50mm; valve head C; gas-proof cover; seat seal FKM; other seals FKM; set pressure 11bar; inspection certificate EN-10204-3.1; for pressure, function and tightness; inspection certificate EN-10204-3.1; for material (inlet body); inspection certificate EN-10204-3.1; for material (flange); inspection certificate EN-10204-2.2; for function, inlet body and cone Country of origin EU
Country of origin: Germany
Short Itemnumber: SV10805011V5M
safety valve series SV10; for vapors, gases and liquids; body stainless steel AISI 316Ti; spring cover and outlet body stainless steel AISI 316Ti; inlet DN80/PN16; outlet DN80/PN16; DN 50mm; valve head C; gas-proof cover; seat seal FKM; other seals FKM; set pressure 11bar; inspection certificate EN-10204-3.1; for pressure, function and tightness; inspection certificate EN-10204-3.1; for material (inlet body); inspection certificate EN-10204-3.1; for material (flange); inspection certificate EN-10204-2.2; for function, inlet body and cone Country of origin EU
Technical specifications
| Inlet | DN80/PN16 |
|---|---|
| Outlet | DN80/PN16 |
| DN | 50 mm |
| Valve head | C |
| Inlet | DN80/PN16 |
| Outlet | DN80/PN16 |
| DN | 50 mm |
| Valve head | C |
| Seat seal | FKM |
| Other seals | FKM |
| Set pressure | 11 bar |
SV10-80-50-11-V-5M
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Sicherheitsventil Serie SV10 · DE
Data sheet 13,0 MB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · Safety valve Series SV10 · EN
Data sheet 13,1 MB Updated 13/06/2026
