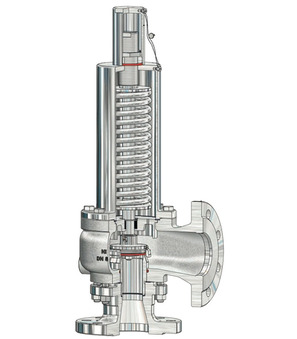

safety valve series SV10; for vapors, gases and liquids; body stainless steel AISI 316Ti; spring cover and outlet body stainless steel AISI 316Ti; inlet DN100/PN16; outlet DN100/PN16; DN 60mm; valve head C; seat seal FPM; other seals FPM; set pressure 11bar; temperature range -20...+200°C; flow 10210 Nm3/h; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness; inspection certificate EN-10204-2.2; for function, inlet body and cone Country of origin EU
Country of origin: Germany
Short Itemnumber: SV101006011V4J
safety valve series SV10; for vapors, gases and liquids; body stainless steel AISI 316Ti; spring cover and outlet body stainless steel AISI 316Ti; inlet DN100/PN16; outlet DN100/PN16; DN 60mm; valve head C; seat seal FPM; other seals FPM; set pressure 11bar; temperature range -20...+200°C; flow 10210 Nm3/h; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness; inspection certificate EN-10204-2.2; for function, inlet body and cone Country of origin EU
Technical specifications
| Inlet | DN100/PN16 |
|---|---|
| Outlet | DN100/PN16 |
| DN | 60 mm |
| Valve head | C |
| Inlet | DN100/PN16 |
| Outlet | DN100/PN16 |
| DN | 60 mm |
| Valve head | C |
| Seat seal | FPM |
| Other seals | FPM |
| Set pressure | 11 bar |
SV10-100-60-11-V-4J
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Sicherheitsventil Serie SV10 · DE
Data sheet 13,0 MB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · Safety valve Series SV10 · EN
Data sheet 13,1 MB Updated 13/06/2026
