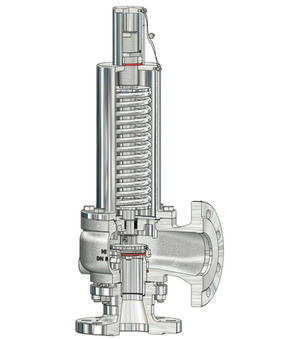

Safety valve Series SV10; For vapors, gases and liquids; Body Stainless steel AISI 316Ti; Spring cover And Outlet body Stainless steel AISI 316Ti; Inlet DN100/PN16; Outlet DN100/PN16; DN 60mm; Valve head C; Seat seal EPDM; Other seals EPDM; Set pressure 1bar
Country of origin: Germany
Weight: 0.53 Kg
Short Itemnumber: SV10100601E
safety valve series SV10; for vapors, gases and liquids; body stainless steel AISI 316Ti; spring cover and outlet body stainless steel AISI 316Ti; inlet DN100/PN16; outlet DN100/PN16; DN 60mm; valve head C; seat seal EPDM; other seals EPDM; set pressure 1bar
Technical specifications
| Inlet | DN100/PN16 |
|---|---|
| DN | 60 mm |
| Valve head | C |
| Outlet | DN100/PN16 |
| Inlet | DN100/PN16 |
| DN | 60 mm |
| Valve head | C |
| Outlet | DN100/PN16 |
| Seat seal | EPDM |
| Other seals | EPDM |
| Set pressure | 1 bar |
SV10-100-60-1-E
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Sicherheitsventil Serie SV10 · DE
Data sheet 13,0 MB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · Safety valve Series SV10 · EN
Data sheet 13,1 MB Updated 13/06/2026
