STASTO Allgemeine Preisliste (EUR)
2/2-way solenoid valve Series SL200, 21H Store
  1. Products
  2. Armatures
  3. Solenoid valves for liquids and gases
  4. Other materiales - A01
  5. 2/2-way solenoid valve Series SL200, 21H
  6. SL200-12-E-BDV08110AY-C003-32-6

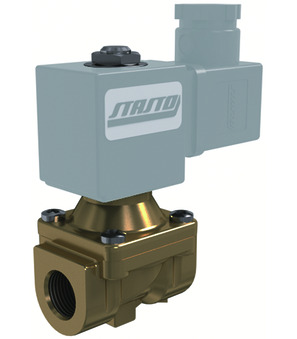

SL200-12-E-BDV08110AY-C003-32-6

SL200-12-E-BDV08110AY-C003-32-6

SL200-12-E
2/2-way solenoid valve Series SL200-E, 21H-E; Pilot-operated; NC; Body Brass; Seal EPDM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G G1/2"; DN 12mm; Pressure AC 0,1…20bar; Pressure DC 0,1…10bar; Length 50mm
BDV08110AY
Coil Type BDV; For humid area; Approval CSA/UL/VDE; Connector size 32mm; Voltage 110V/50Hz,120V/60Hz
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.47 Kg
Short Itemnumber: SL20012EBDV08110AYC003326
https://www.stasto.eu/web/image/product.template/215836/image_1920?unique=d5ecd09

SL200-12-E
2/2-way solenoid valve series SL200-E, 21H-E; pilot-operated; NC; body brass; seal EPDM; medium temperature -10...+120°C; standard coil BDA; connector size 32mm; G G1/2"; DN 12mm; pressure AC 0,1…20bar; pressure DC 0,1…10bar; length 50mm
BDV08110AY
coil type BDV; for humid area; approval CSA/UL/VDE; connector size 32mm; voltage 110V/50Hz,120V/60Hz
C003-32-6
connector; connector size 32mm; Standard; voltage 0...250VAC/DC

96,80 € 96.8 EUR 96,80 €

price on request

  • Female thread
  • DN
  • Length
  • Connector size
  • Connector
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread G 1/2"
DN 12 mm
Length 50 mm
Designs
Connector size 32 mm
design
Design Standard
Electrical key figures
Voltage 110V/50Hz, 120V/60Hz
Voltage type AC
pressure
Pressure AC 0,1...20 bar
Pressure DC 0,1...10 bar
materials
Seal EPDM
characteristics
Coil BDA
Medium temperature -10...+120 °C
Approval UL/CSA/VDE

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
3
Data sheet_2/2-way solenoid valve Series SL200, 21H_EN.pdf
Download
Data sheet_Coil Type BDV_EN.pdf
BDV08110AY
Download
Data sheet_Connector_EN.pdf
C003-32-6
Download
Declarations of Conformity
1
Declaration of conformity_Coil Type BDV_EN.pdf
BDV08110AY
Download
CAD / 3D
2
CADSTEP_BDV08110AY.stp
BDV08110AY
Download
CADSTEP_C003326.stp
C003-32-6
Download

ZIP
Datové listy
3
Datový list_2/2 cestný elektromagnetický ventil série SL200, 21H_CS.pdf
Download
Datový list_konektor_CS.pdf
C003-32-6
Download
Datový list_magnetická cívka typ BDV_CS.pdf
BDV08110AY
Download
Prohlášení o shodě
1
Prohlášení o shodě_magnetická cívka typ BDV_CS.pdf
BDV08110AY
Download

ZIP
Data Sheets
3
Datablad_2/2-vejs magnetventil Serie SL200, 21H_DA_DK.pdf
Download
Datablad_Apparatstikdåse_DA_DK.pdf
C003-32-6
Download
Datablad_Magnetspole Type BDV_DA_DK.pdf
BDV08110AY
Download

ZIP
Datenblätter
3
Datenblatt_2/2-Wege-Magnetventil Serie SL200, 21H_DE.pdf
Download
Datenblatt_Gerätesteckdose_DE.pdf
C003-32-6
Download
Datenblatt_Magnetspule Typ BDV_DE.pdf
BDV08110AY
Download
Konformitätserklärungen
1
Konformitätserklärung_Magnetspule Typ BDV_DE.pdf
BDV08110AY
Download

ZIP
Data Sheets
3
Δελτίο δεδομένων_Ηλεκτρομαγνητική βαλβίδα 2/2 οδών Σειρά SL200, 21H_EL_GR.pdf
Download
Δελτίο δεδομένων_Πηνίο ηλεκτρομαγνήτη Τύπος BDV_EL_GR.pdf
BDV08110AY
Download
Δελτίο δεδομένων_Συσκευαστική πρίζα συσκευής_EL_GR.pdf
C003-32-6
Download

ZIP
Data Sheets
3
Ficha técnica_Bobina magnética Tipo BDV_ES.pdf
BDV08110AY
Download
Ficha técnica_Toma de equipo_ES.pdf
C003-32-6
Download
Ficha técnica_Válvula solenoide de 2/2 vías Serie SL200, 21H_ES.pdf
Download

ZIP
Data Sheets
3
Tietolehti_2/2-tie magneettiventtiili Sarja SL200, 21H_FI.pdf
Download
Tietolehti_Laiteliitinpistorasia_FI.pdf
C003-32-6
Download
Tietolehti_Magneettikela Tyyppi BDV_FI.pdf
BDV08110AY
Download

ZIP
Data Sheets
3
Fiche technique_Bobine électromagnétique Type BDV_FR.pdf
BDV08110AY
Download
Fiche technique_Prise d’appareil_FR.pdf
C003-32-6
Download
Fiche technique_Électrovanne 2/2 voies Série SL200, 21H_FR.pdf
Download

ZIP
Data Sheets
3
Podatkovni list_2/2-putni elektromagnetski ventil Serija SL200, 21H_HR.pdf
Download
Podatkovni list_Magnetna zavojnica Tip BDV_HR.pdf
BDV08110AY
Download
Podatkovni list_Utičnica za uređaj_HR.pdf
C003-32-6
Download

ZIP
Adatlapok
3
Adatlap_2/2-es mágnesszelep sorozat SL200, 21H_HU.pdf
Download
Adatlap_mágnestekercs típus BDV_HU.pdf
BDV08110AY
Download
Adatlap_stekker_HU.pdf
C003-32-6
Download
Megfelelőségi nyilatkozatok
1
Megfelelőségi nyilatkozat_mágnestekercs típus BDV_HU.pdf
BDV08110AY
Download

ZIP
Data Sheets
3
Scheda tecnica_Bobina magnetica Tipo BDV_IT.pdf
BDV08110AY
Download
Scheda tecnica_Elettrovalvola 2/2 vie Serie SL200, 21H_IT.pdf
Download
Scheda tecnica_Presa per apparecchi_IT.pdf
C003-32-6
Download

ZIP
Data Sheets
3
Datablad_2/2-veis magnetventil Serie SL200, 21H_NB_NO.pdf
Download
Datablad_Apparatkontakt_NB_NO.pdf
C003-32-6
Download
Datablad_Magnetspole Type BDV_NB_NO.pdf
BDV08110AY
Download

ZIP
Data Sheets
3
Datasheet_2/2-weg magneetventiel Serie SL200, 21H_NL.pdf
Download
Datasheet_Apparaatcontactdoos_NL.pdf
C003-32-6
Download
Datasheet_Magneetspoel Type BDV_NL.pdf
BDV08110AY
Download

ZIP
Karty katalogowe
3
Arkusz danych_2/2-drogowy zawór elektromagnetyczny Seria SL200, 21H_PL.pdf
Download
Arkusz danych_cewka elektromagnetyczna typ BDV_PL.pdf
BDV08110AY
Download
Arkusz danych_wtyczka_PL.pdf
C003-32-6
Download
Deklaracje zgodności
1
Deklaracja zgodności_cewka elektromagnetyczna typ BDV_PL.pdf
BDV08110AY
Download

ZIP
Data Sheets
3
Fișă de date_Bobină solenoid tip BDV_RO.pdf
BDV08110AY
Download
Fișă de date_Supapă electromagnetică cu 2/2 căi serie SL200, 21H_RO.pdf
Download
Fișă de date_conector_RO.pdf
C003-32-6
Download

ZIP
Podatkovni listi
3
Podatkovni list_2/2-potni magnetni ventil serija SL200, 21H_SL.pdf
Download
Podatkovni list_Magnetna tuljava Tip BDV_SL.pdf
BDV08110AY
Download
Podatkovni list_vtičnica_SL.pdf
C003-32-6
Download
Izjave o skladnosti
1
Izjava o skladnosti_Magnetna tuljava Tip BDV_SL.pdf
BDV08110AY
Download

ZIP
Data Sheets
3
Tehnički list_2/2-kraki elektromagnetni ventil serije SL200, 21H_SRLATIN.pdf
Download
Tehnički list_konektor_SRLATIN.pdf
C003-32-6
Download
Tehnički list_namotaj tip BDV_SRLATIN.pdf
BDV08110AY
Download
Declarations of Conformity
1
Deklaracija o usklađenosti_namotaj tip BDV_SRLATIN.pdf
BDV08110AY
Download

ZIP
Data Sheets
3
Datablad_2/2-vägs magnetventil Serie SL200, 21H_SV.pdf
Download
Datablad_Apparatuttag_SV.pdf
C003-32-6
Download
Datablad_Magnetspole Typ BDV_SV.pdf
BDV08110AY
Download
2/2-way solenoid valve SL200-12-E
SL200-12-E x 1.0
2/2-way solenoid valve SL200-12-E
2/2-way solenoid valve Series SL200-E, 21H-E; Pilot-operated; NC; Body Brass; Seal EPDM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/2"; DN 12mm; Pressure AC 0,1…20bar; Pressure DC 0,1…10bar; Length 50mm
Add to Cart
BDV08110AY
BDV08110AY x 1.0
BDV08110AY
Coil Type BDV; For humid area; Approval CSA/UL/VDE; Connector size 32mm; Voltage 110V/50Hz,120V/60Hz
Add to Cart
