STASTO Allgemeine Preisliste (EUR)

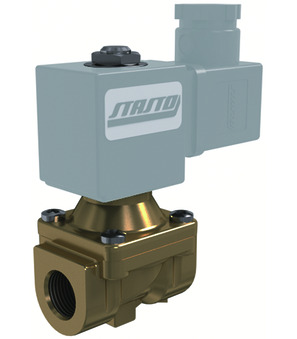

SL200-12-E-BDA08024DS-C003-32-LV-2

SL200-12-E-BDA08024DS-C003-32-LV-2

SL200-12-E
2/2-way solenoid valve Series SL200-E, 21H-E; Pilot-operated; NC; Body Brass; Seal EPDM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/2"; DN 12mm; Pressure AC 0,1…20bar; Pressure DC 0,1…10bar; Length 50mm
BDA08024DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 24V/50-60Hz
C003-32-LV-2
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC

Intrastat No.: 84818099
Country of origin: Italy Made in Europe
Weight: 0.45 Kg
Short Itemnumber: SL20012EBDA08024DSC00332LV2
https://www.stasto.eu/web/image/product.template/243851/image_1920?unique=b515099

NWT40-100
profile magnetic cylinder series NWT; according to ISO 15552, VDMA; double acting; pressure range 0,5...10bar; adjustable cushions; diameter 40mm; stroke 100mm; piston rod thread M12x1,25; connection 1/4"; push force at 6 bar 754N

97,40 € 97.4 EUR 97,40 €

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Connector size
  • Connector
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Female thread G 1/2"
DN 12 mm
Length 50 mm
Voltage 24V/50-60Hz
All specifications (11)
Documents
Data sheets, drawings and CAD files
Female thread G 1/2"
DN 12 mm
Length 50 mm
Voltage 24V/50-60Hz
Pressure AC 0,1...20 bar
Pressure DC 0,1...10 bar
Seal EPDM
Medium temperature -10...+120 °C
Voltage type AC
Design With integrated LED-yellow and VDR
Approval CE

SL200-12-E-BDA08024DS-C003-32-LV-2

Documents

6 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

3

Declarations of Conformity

1

CAD / 3D

2
Danish / Dansk
ZIP

Data Sheets

3

CAD / 3D

2
German / Deutsch
ZIP

Data Sheets

3

Declarations of Conformity

1

CAD / 3D

2
Greek / Ελληνικά
ZIP

Data Sheets

3

CAD / 3D

2
English
ZIP

Data Sheets

3

Declarations of Conformity

1

CAD / 3D

2
Spanish / Español
ZIP

Data Sheets

3

CAD / 3D

2
Finnish / Suomi
ZIP

Data Sheets

3

CAD / 3D

2
French / Français
ZIP

Data Sheets

3

CAD / 3D

2
Croatian / hrvatski jezik
ZIP

Data Sheets

3

CAD / 3D

2
Hungarian / Magyar
ZIP

Data Sheets

3

Declarations of Conformity

1

CAD / 3D

2
Italian / Italiano
ZIP

Data Sheets

3

CAD / 3D

2
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

3

CAD / 3D

2
Dutch / Nederlands
ZIP

Data Sheets

3

CAD / 3D

2
Polish / Język polski
ZIP

Data Sheets

3

Declarations of Conformity

1

CAD / 3D

2
Romanian / română
ZIP

Data Sheets

3

CAD / 3D

2
Slovenian / slovenščina
ZIP

Data Sheets

3

Declarations of Conformity

1

CAD / 3D

2
Serbian (Latin) / srpski
ZIP

Data Sheets

3

Declarations of Conformity

1

CAD / 3D

2
Swedish / Svenska
ZIP

Data Sheets

3

CAD / 3D

2
2/2-way solenoid valve SL200-12-E
SL200-12-E x 1.0 Pcs
2/2-way solenoid valve SL200-12-E
2/2-way solenoid valve Series SL200-E, 21H-E; Pilot-operated; NC; Body Brass; Seal EPDM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/2"; DN 12mm; Pressure AC 0,1…20bar; Pressure DC 0,1…10bar; Length 50mm
BDA08024DS
BDA08024DS x 1.0 Pcs
BDA08024DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 24V/50-60Hz
C003-32-LV-2
C003-32-LV-2 x 1.0 Pcs
C003-32-LV-2
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC
