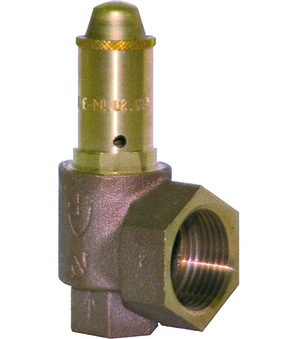

safety valve, full stroke series SF01; with twist lifting; body bronze; seal NBR; application: compressed air, non-toxic gases, vapors; medium temperature -30...130°C; inlet G 1/2"; outlet G 1"; DN 15,8mm; set pressure 10bar; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness
Intrastat No.: 84814090
Country of origin: Germany
Short Itemnumber: SF0112W15.8103C
Country of origin: Germany
Short Itemnumber: SF0112W15.8103C
safety valve, full stroke series SF01; with twist lifting; body bronze; seal NBR; application: compressed air, non-toxic gases, vapors; medium temperature -30...130°C; inlet G 1/2"; outlet G 1"; DN 15,8mm; set pressure 10bar; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness
Technical specifications
| Inlet G | 1/2" |
|---|---|
| Outlet | G 1" |
| DN | 15,8 mm |
| Set pressure | 10 bar |
| Inlet G | 1/2" |
| Outlet | G 1" |
| DN | 15,8 mm |
| Set pressure | 10 bar |
| Seal | NBR |
No spare parts are available for this product.
