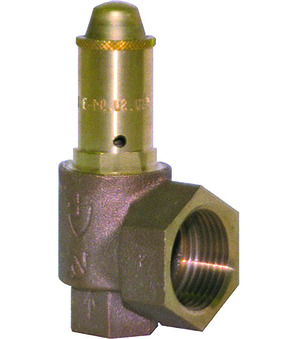

Safety valve, full stroke 1"-11/2"-23-16,7
Safety valve, full stroke Series SF01; With twist lifting; Body Bronze; Seal FKM; Application: Compressed air, Non-toxic gases, vapors; Medium temperature -20...200°C; Incl. Inspection certificate EN-10204-3.1; For pressure, function and tightness; Inlet G 1"; Outlet G 11/2"; DN 23mm; Set pressure 16,7bar
Intrastat No.: 84814090
Country of origin: Germany
Weight: 2.013 Kg
Short Itemnumber: SF0110W2316.7V3C
Country of origin: Germany
Weight: 2.013 Kg
Short Itemnumber: SF0110W2316.7V3C
safety valve, full stroke series SF01; with twist lifting; body bronze; seal FKM; application: compressed air, non-toxic gases, vapors; medium temperature -20...200°C; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness; inlet G 1"; outlet G 11/2"; DN 23mm; set pressure 16,7bar
| dimension | |
|---|---|
| DN | 23 mm |
| Inlet G | 1" |
| Outlet | G 1 1/2" |
| characteristics | |
| Set pressure | 16,7 bar |
No spare parts are available for this product.
