  5. Knife gate valve with double acting actuator Series L1N
  6. L1S2H2-5-71,3-PIB-ABS40-C001-03-C002-31-LV-2-MSU03/2

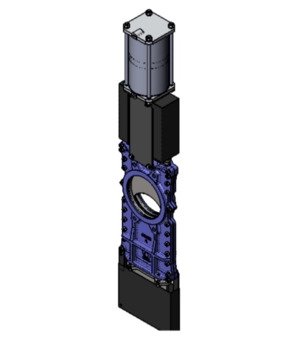

Knife gate valve with double acting actuator L1S2H2-5-71,3-PIB-ABS40-C001-03-C002-31-LV-2-MSU03/2

Knife gate valve with double acting actuator L1S2H2-5-71,3-PIB-ABS40-C001-03-C002-31-LV-2-MSU03/2

L1S2H2-5-71,3-PIB
Knife gate valve with single-acting pneumatic actuator series L1N; NC; wafer type; body cast iron EN-GJL-250; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; sealed in both directions; control pressure 5,5...8bar; medium temperature -5...+90°C; ; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 71,3mm; length 40mm; pressure range 0...10bar
ABS40
mounted pilot valve series ABS; suitable for pneumatically operated knife gate valves; 5/2-way solenoid valve; flow control valves; silencer; mounted at cylinder; type of coil CS; connector size 16mm; 5/2-Wege-Magnetventil (K52W1014); DN gate valve 50-400mm
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
connector; connector size 22mm; with integrated LED-yellow and VDR; voltage 24VAC/DC
MSU03/2
electrical position indication series MSU; suitable for knife gate valve; mounted inductive proximity switch, 10...30VDC (2 pieces); cable length 2m

Intrastat No.: 84818061
Country of origin: Spain
Weight: 0.67 Kg
Short Itemnumber: L1S2H2571.3PIBABS40C00103C00231LV2MSU032
