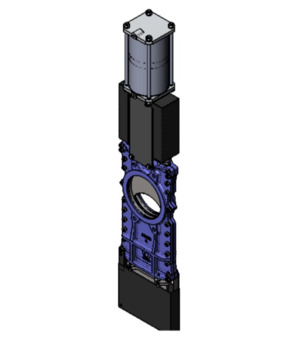

Knife gate valve with double acting actuator L1N2H2-5-65-PIB-MSU03/2

Knife gate valve with double acting actuator L1N2H2-5-65-PIB-MSU03/2

L1N2H2-5-65-PIB
knife gate valve with double acting actuator series L1N; wafer type; body cast iron EN-GJL-250; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; sealed in both directions; control pressure 5,5...8bar; medium temperature -5...+90°C; ; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 65mm; length 40mm; pressure range 0...10bar
MSU03/2
electrical position indication series MSU; suitable for knife gate valve; mounted inductive proximity switch, 10...30VDC (2 pieces); cable length 2m

Intrastat No.: 84818061
Country of origin: Spain Made in Europe
Weight: 0.3 Kg
Short Itemnumber: L1N2H2565PIBMSU032
https://www.stasto.eu/web/image/product.template/228013/image_1920?unique=edd69c1

L1N2H2-5-65-PIB
knife gate valve with double acting actuator series L1N; wafer type; body cast iron EN-GJL-250; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; sealed in both directions; control pressure 5,5...8bar; medium temperature -5...+90°C; ; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 65mm; length 40mm; pressure range 0...10bar
MSU03/2
electrical position indication series MSU; suitable for knife gate valve; mounted inductive proximity switch, 10...30VDC (2 pieces); cable length 2m

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Connection
  • DN
  • Length
  • Cable length
  • Function
  • Actuation
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Switch design
  • Coil
  • Flow rate
  • Medium temperature
  • Brand
  • Suitable silencer

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
DN 65 mm
Length 40 mm
Cable length 2m
All specifications (7)
Documents
Data sheets, drawings and CAD files
Pressure range 0...10 bar
DN 65 mm
Length 40 mm
Cable length 2m
Function NO PNP
Switch design Inductive proximity switch (2 Pieces)
Voltage 10-30VDC

L1N2H2-5-65-PIB-MSU03/2
