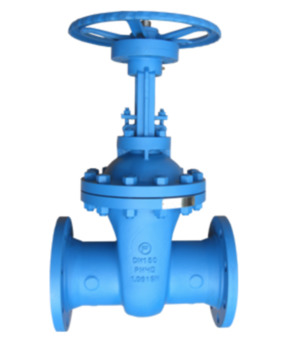

Gate valve with handwheel Series GA004; Body 1.0619; Nominal flange pressure PN25; Handwheel Ductile iron; Packing gland Graphite; Rising stem; Medium temperature -10...+400°C; Pressure range 0...25bar; DN 80mm; Length 280mm
Country of origin: China
Weight: 34.5 Kg
Short Itemnumber: GA00480W
gate valve with handwheel series GA004; body A216-WCB; nominal flange pressure PN25; handwheel ductile iron; packing gland graphite; rising stem; medium temperature -10...+400°C; pressure range 0...25bar; DN 80mm; length 280mm
Technical specifications
| Pressure range | 0...25bar |
|---|---|
| DN | 80 mm |
| Length | 280 mm |
| Pressure range | 0...25bar |
| DN | 80 mm |
| Length | 280 mm |
GA004-80-W
