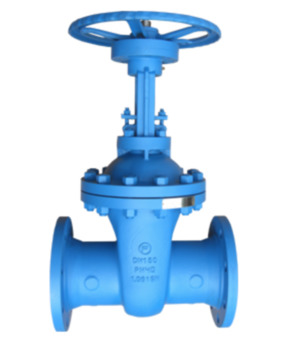

Gate valve with handwheel Series GA004; Body 1.0619; Nominal flange pressure PN25; Handwheel Ductile iron; Packing gland Graphite; Rising stem; Medium temperature -10...+400°C; Pressure range 0...25bar; DN 65mm; Length 270mm
Country of origin: China
Weight: 31.5 Kg
Short Itemnumber: GA00465W
gate valve with handwheel series GA004; body A216-WCB; nominal flange pressure PN25; handwheel ductile iron; packing gland graphite; rising stem; medium temperature -10...+400°C; pressure range 0...25bar; DN 65mm; length 270mm
Technical specifications
| Pressure range | 0...25bar |
|---|---|
| DN | 65 mm |
| Length | 270 mm |
| Pressure range | 0...25bar |
| DN | 65 mm |
| Length | 270 mm |
GA004-65-W
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Keilrundschieber mit Handrad Serie GA004 · DE
Data sheet 4,1 MB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · Gate valve with handwheel Series GA004 · EN
Data sheet 4,1 MB Updated 13/06/2026
