FR03-34H-0,5/10-F40-M

Name: FR03-34H-0,5/10-F40-M
Brand: STASTO
SKU: FR03-34H-0,5/10-F40-M
Price: 343.8 EUR
Availability: InStock

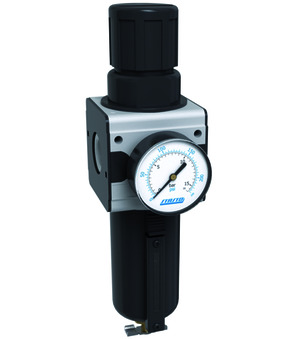

Filter regulator Series Modul FR03-M; Relieving; Drain valve Semi-automatic; Inlet pressure Max. 16bar; Pressure range 0,5...10bar; Metal bowl; Filter element 40µm; Connection 3/4"; Flow at 6bar/Δp=1bar 11400Nl/min;

Intrastat No.: 84811005
Country of origin: Germany
Short Itemnumber: FR0334H0.510F40M

343,80 € 343.8 EUR 343,80 €

Connection
- 3/4"
Dimension
- 54
Bowl
- With transparent inspection pipe
Flow at 6bar/Δp=1bar
- 11400 Nl/min
Filter element
- 5 µm

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
Connection	3/4"
Dimension	54
design
Bowl	With transparent inspection pipe
characteristics
Flow at 6bar/Δp=1bar	11400 Nl/min
Filter element	5 µm

FR03-34H-0.5/10-F40-M-X x 1.0

FR03-34H-0.5/10-F40-M-X

Filter regulator; Relieving; Drain valve Semi-automatic; Inlet pressure Max. 16bar; Pressure range 0,5...10bar; Metal bowl; Connection 3/4"; Flow at 6bar 14000Nl/min; Filter element 40ym; Bowl With transparent inspection pipe

Add to Cart

MA001-50R-16-D x 1.0

Bourdon tube manometer MA001-50R-16-D

Bourdon tube manometer Series MA001; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6; Diameter 50mm; Indicating range 0-16/0-230; Unit bar/psi; Connection 1/4"

Add to Cart
