FR03-14H-0.5/10-M-01

Name: FR03-14H-0.5/10-M-01
Brand: STASTO
SKU: FR03-14H-0.5/10-M-01

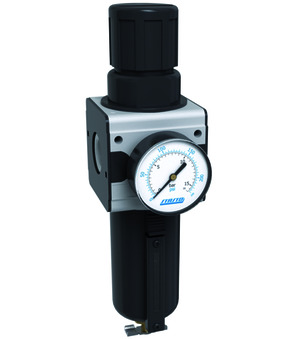

Filter regulator Series Modul FR03-M; Relieving; Drain valve Semi-automatic; Inlet pressure Max. 16bar; Pressure range 0,5...10bar; Metal bowl; Filter element 5µm; Connection 1/4"; Flow at 6bar/Δp=1bar 1500Nl/min; Filter element 5µm; Low temperature design down to -40°C ambient temperature

Intrastat No.: 84811005
Country of origin: Germany
Short Itemnumber: FR0314H0.510M01

filter regulator series Modul FR03-M; relieving; drain valve semi-automatic; inlet pressure max. 16bar; pressure range 0,5...10bar; metal bowl; filter element 5µm; connection 1/4"; flow at 6bar/Δp=1bar 1500Nl/min; filter element 5µm; low temperature design down to -40°C ambient temperature

On request

Connection
- 1/4"
Dimension
- 11
Bowl
- With transparent inspection pipe
Flow at 6bar/Δp=1bar
- 1500 Nl/min
Filter element
- 5 µm

This combination does not exist.

Availability:

Specifications
Spare Parts

dimension
Connection	1/4"
Dimension	11
design
Bowl	With transparent inspection pipe
characteristics
Flow at 6bar/Δp=1bar	1500 Nl/min
Filter element	5 µm

FR03-14H-0,5/10-M-01-X x 1.0

FR03-14H-0,5/10-M-01-X

Filter regulator; Relieving; Drain valve Semi-automatic; Inlet pressure Max. 16bar; Pressure range 0,5...10bar; Metal bowl; Connection 1/4"; Flow at 6bar 1450Nl/min; Filter element 5ym; Bowl With transparent inspection pipe; Low temperature design down to -40°C ambient temperature

Add to Cart

MA001-4014R-16-D x 1.0

MA001-4014R-16-D

Bourdon tube manometer; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6; Diameter 40mm; Indicating range 0-16/0-230; Unit bar/psi; Connection 1/4"

Add to Cart
