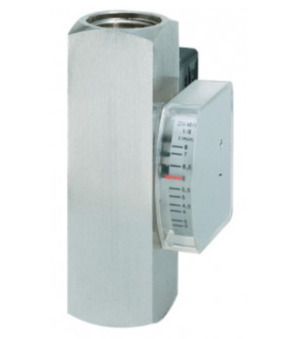

Flow monitors; Viscosity compensated ...600mm²/s; Body Nickel plated brass ; For any mounting position; Medium temperature Max. 120°C; Oil scale; NO contact; Application: Monitoring of lubrication; Connection 1"; Switching range 3…10 L/min; Maximum pressure 250bar; U max. 250V; Max. current 3A; Length 130mm; Electrical connection M12x1
Country of origin: Germany
Weight: 1.21 Kg
Short Itemnumber: FM2410N1001
flow monitors; viscosity compensated ...600mm²/s; body nickel plated brass ; for any mounting position; medium temperature max. 120°C; oil scale; NO contact; application: monitoring of lubrication; connection 1"; switching range 3…10 l/min; maximum pressure 250bar; U max. 250V; max. current 3A; length 130mm; electrical connection M12x1
| Connection | 1" |
| Brand | STASTO |
FM24-10-N-10-01
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Strömungswächter 1“-1…10-250-250V-130 · DE
Data sheet 3,0 MB Updated 13/06/2026
