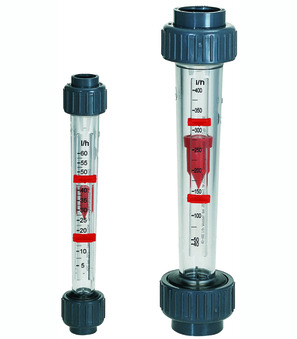

Flow meter FM05S-32-PV-1500-01
Flow meter Series FM04/FM05; Measuring tube PSU; Float PVDF; Solvent cement socket PVC; Temperature range -10...+60°C; Pressure Max. 10bar; Mounting position Vertical pipe; Application: Water; Nominal diameter DN32; Range 150...1500l/h
Intrastat No.: 90261081
Country of origin: Germany
Short Itemnumber: FM05S32PV150001
Country of origin: Germany
Short Itemnumber: FM05S32PV150001
flow meter series FM04/FM05; measuring tube PSU; float PVDF; solvent cement socket PVC; temperature range -10...+60°C; pressure max. 10bar; mounting position vertical pipe; application: water; nominal diameter DN32; range 150...1500l/h
| dimension | |
|---|---|
| Connection | 1 1/4" |
| pressure | |
| Pressure drop at 20°C | 22,8 mbar |
| characteristics | |
| Range | 150...1500 l/h |
No spare parts are available for this product.
