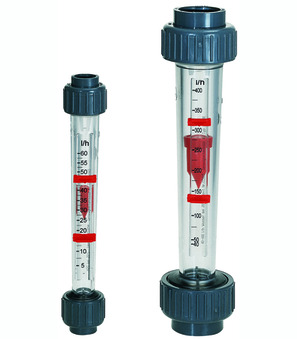

Flow meter; Measuring tube PVC-U; Float with capsuled solenoid PVDF; Female thread Malleable cast iron zinc plated; Temperature range -10...+60°C; Pressure Max. 10bar; Mounting position Vertical pipe; Application: Water; Connection 1"; Range 50...500l/h; Pressure drop at 20°C 22,8mbar; Incl. Measuring sensor; Outlet signal 4...20mA
Country of origin: Germany
Weight: 0.4 Kg
Short Itemnumber: FM0510M50001
flow meter; measuring tube PVC-U; float with capsuled solenoid PVDF; female thread malleable cast iron zinc plated; temperature range -10...+60°C; pressure max. 10bar; mounting position vertical pipe; application: water; connection 1"; range 50...500l/h; pressure drop at 20°C 22,8mbar; incl. measuring sensor; outlet signal 4...20mA
| Connection | 1" |
| Brand | STASTO |
FM05-10-M-500-01
Documents
Language-independent
CAD / 3D
1-
STP
CADSTEP · FM0510M50001
CAD-STEP 3,4 MB Updated 04/10/2026
