Valves, butterfly valves and gate valves - automatically operated

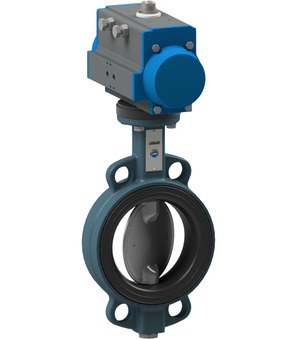

Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22-A; ATEX II 2 G/D Ex h; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 40mm; Length 33mm; Actuator PAS0855

SE23-65-ST1251-03

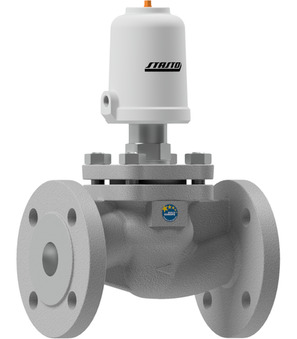

Pneumatically operated seat valve Series SE23-ST; ATEX II 2G Ex h IIC T6…T2 X Gb / II 2D Ex h IIIC 85°C…220°C X Db; NO; Body Stainless steel AISI 316; Seal PTFE; Flange PN40; For gaseous media and liquids; Closing against flow; Medium temperature -30...+170°C; DN 65mm; Operating pressure 0...25bar; Control pressure 2...10bar; Diameter Actuator 125mm; Incl. Stainless steel indicator pin

BUW6-250-DS1P1-D22

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408 Chenisil Coated; Shaft 1.4016; Liner Polyurethane; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+90°C; Pressure range 0...10bar; DN 250mm; Length 68mm; Actuator PAD140

BUW6-200-DSP1-D22

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Polyurethane; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+90°C; Pressure range 0...10bar; DN 200mm; Length 60mm; Actuator PAD125

BUW6-065-DSN-T22

Butterfly valve with pneumatic actuator Series BUW6-DSE-S2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 65mm; Length 46mm; Actuator PAS0855; Safety position NO

BUW6-065-DSN-T22-ABS54-C001-03-C002-31-LV-2

BUW6-040-DSN-T22

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 40mm; Length 33mm; Actuator PAS0855; Safety position NO

BUW6-040-DSN-T22-ABS54-C001-03-C002-31-LV-2

BUW6-040-DSN-T22
Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 40mm; Length 33mm; Actuator PAS0855
ABS54
Mounted pilot valve Series ABS; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
Connector; Connector size 22mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC

BUW6-200-DSN-T22

###ERROR###, product.template, 240342, description_sale, {{{Absperrklappe mit Druckluftdrehantrieb}}} {{{Serie}}} BUW6-DSE-S2; {{{Zwischenflanschausführung}}}; {{{Baulänge}}} {{{gemäß}}} EN558−1R20; {{{Gehäuse}}} {{{GGG40}}} {{{epoxybeschichtet}}}; {{{Scheibe}}} {{{1.4408}}}; {{{Welle}}} {{{1.4016}}}; {{{Manschette}}} NBR; {{{Flanschnenndruck}}} PN10/16/ANSI150; {{{einfachwirkender Antrieb}}}; {{{Steuerdruck}}} 5,5...8bar; {{{Mediumstemperatur}}} -10...+100°C; {{{Druckbereich}}} 0...16bar; DN 200mm; {{{Einbaulänge}}} 60mm; {{{Antrieb}}} PAS2005; <Sicherheitsstellung}}} {{{NO}}}, ma_DE, en_GB

BUW6-065-DSN-S22

BUW6-065-DSN-S22-ABS54-C001-03-C002-31-LV-2

BUW6-065-DSN-S22
Butterfly valve with pneumatic actuator Series BUW6-DSE-S2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 65mm; Length 46mm; Actuator PAS0855
ABS54
Mounted pilot valve Series ABS; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
Connector; Connector size 22mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC

BUW6-040-DSN-S22

BUW6-040-DSN-S22-ABS54-C001-03-C002-31-LV-2

BUW6-040-DSN-S22
Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 40mm; Length 33mm; Actuator PAS0855
ABS54
Mounted pilot valve Series ABS; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
Connector; Connector size 22mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC

BUW6-200-DSN-S22

Butterfly valve with pneumatic actuator Series BUW6-DSE-S2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100C; Pressure range 0...16bar; DN 200mm; Length 60mm; Actuator PAS2005

BUW6-200-DSN-T22-ABS54-C001-03-C002-31-LV-2

BUW6-200-DSN-T22
Butterfly valve with pneumatic actuator Series BUW6-DSE-S2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 200mm; Length 60mm; Actuator PAS2005
ABS54
Mounted pilot valve Series ABS; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
Connector; Connector size 22mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC

BUW6-200-DSN-S22-ABS54-C001-03-C002-31-LV-2

BUW6-200-DSN-S22
Butterfly valve with pneumatic actuator Series BUW6-DSE-S2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 200mm; Length 60mm; Actuator PAS2005
ABS54
Mounted pilot valve Series ABS; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
connector; connector size 22mm; with integrated LED-yellow and VDR; voltage 24VAC/DC

SE02-D50-ST1252

Pneumatically operated seat valve; NC; Body Stainless steel 1.4408; Seal PTFE; Butt weld ends According to DIN11850-2; For liquids; Closing against flow; Medium temperature -30...+200°C; DN 50mm; Operating pressure 0...9bar; Control pressure 2,3...10bar; Diameter Actuator 125mm

BUW6-150-DSE-072

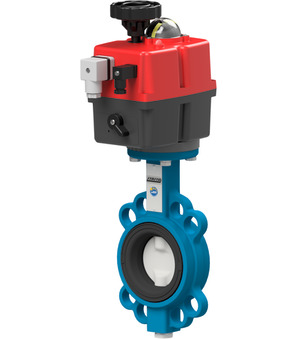

Butterfly valve with electrical actuator Series BUW6-DSE-07; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 150mm; Length 56mm; Operating time 20s; Voltage 400V/50/60Hz; 3-phase

BUW6-200-DSE-072-02

Butterfly valve with electrical actuator Series BUW6-DSE-07; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 200mm; Length 60mm; Operating time 35s; Voltage 400V/50/60Hz; 3-phase

A1EM2H2-5-150-B-02

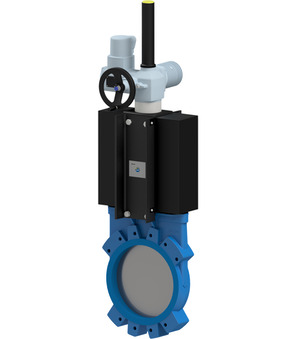

Knife gate valve with electric actuator Series A1EM2H2-5-B; Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Voltage 400V 50Hz; Medium temperature -5...+90°C; DN 150mm; Length 60mm; Pressure range 0…10bar; Actuator AUMA SA0.76; Stem extension H1=3500mm; d1=400mm; ; ATEX zone 1 and 21
