STASTO Allgemeine Preisliste (EUR)
Other materiales - A05 Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - automatically operated
  4. Other materiales - A05
  5. Other materiales - A05
  6. BUW6-200-DSE-072-02
BUW6-200-DSE-072-02

BUW6-200-DSE-072-02

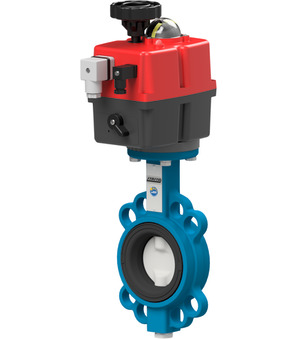

Butterfly valve with electrical actuator Series BUW6-DSE-07; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 200mm; Length 60mm; Operating time 35s; Voltage 400V/50/60Hz; 3-phase

Intrastat No.: 84818085
Country of origin: France
Weight: 14.16 Kg
Short Itemnumber: BUW6200DSE07202
https://www.stasto.eu/web/image/product.template/240455/image_1920?unique=24fee4a

butterfly valve with electrical actuator series BUW6-DSE-01; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...16bar; DN 150mm; length 56mm; operating time 34s; voltage 24...240VAC / 24...135VDC

2.351,50 € 2351.5 EUR 2.351,50 €

price on request

  • Diameter
  • Male thread
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2
  • Operating time

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 150 mm
Length 56 mm
Electrical key figures
Voltage 24...240VAC / 24...135VDC
characteristics
Operating time 34 s
BUW6-200-DSE-B x 1.0
Butterfly valve with bare shaft BUW6-200-DSE-B
Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0…16bar; Flange PN10/16/ANSI150
Add to Cart
VS300-0M35-Q22-01 x 1.0
VS300-0M35-Q22-01
Electrical actuator Series VR/VS; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP68; Torque 300Nm; Operating time 35s; Flange ISO5211 F07/F10-Stern 22mm; Voltage 400V/50/60Hz; 3-phase
Add to Cart
