STASTO Allgemeine Preisliste (EUR)
Other materiales - A05 Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - automatically operated
  4. Other materiales - A05
  5. Other materiales - A05
  6. BUW6-200-DSN-T22

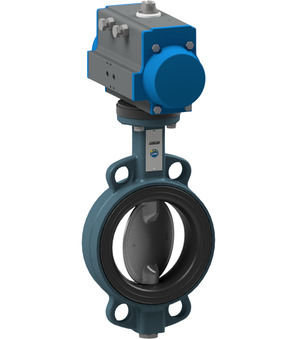

BUW6-200-DSN-T22

BUW6-200-DSN-T22

###ERROR###, product.template, 240342, description_sale, {{{Absperrklappe mit Druckluftdrehantrieb}}} {{{Serie}}} BUW6-DSE-S2; {{{Zwischenflanschausführung}}}; {{{Baulänge}}} {{{gemäß}}} EN558−1R20; {{{Gehäuse}}} {{{GGG40}}} {{{epoxybeschichtet}}}; {{{Scheibe}}} {{{1.4408}}}; {{{Welle}}} {{{1.4016}}}; {{{Manschette}}} NBR; {{{Flanschnenndruck}}} PN10/16/ANSI150; {{{einfachwirkender Antrieb}}}; {{{Steuerdruck}}} 5,5...8bar; {{{Mediumstemperatur}}} -10...+100°C; {{{Druckbereich}}} 0...16bar; DN 200mm; {{{Einbaulänge}}} 60mm; {{{Antrieb}}} PAS2005; <Sicherheitsstellung}}} {{{NO}}}, ma_DE, en_GB

Intrastat No.: 84818085
Country of origin: Italy
Weight: 68.5 Kg
Short Itemnumber: BUW6200DSNT22
https://www.stasto.eu/web/image/product.template/240342/image_1920?unique=24fee4a

Butterfly valve with pneumatic actuator Series BUW6-DSE-S2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 200mm; Length 60mm; Actuator PAS2005

3.033,40 € 3033.4 EUR 3.033,40 €

price on request

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 200 mm
Length 60 mm
pressure
Pressure range 0...10 bar
characteristics
Actuator PAS2005
BUW6-200-DSN-B x 1.0
Butterfly valve with bare shaft BUW6-200-DSN-B
Butterfly valve with bare shaft Series BUW1-DSN-B, BUW6-DSN-B, BUW-2-DSN, BUWV-DSN-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 200mm; Length 60mm; Pressure range 0...16bar; Nominal flange pressure PN10/16/ANSI150
Add to Cart
Pneumatic actuator PAS2005-B
PAS2005-B x 1.0
Pneumatic actuator PAS2005-B
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Pinion turned by 90°; Diameter 200mm; Flange ISO5211 F14; Female square 36mm; Torque at 5,5bar 406Nm
Add to Cart
