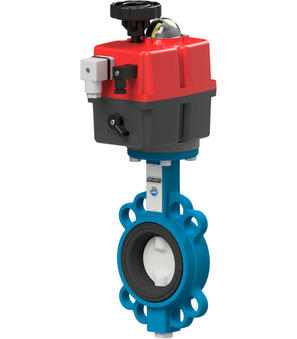

BUW6-150-DSE-072

BUW6-150-DSE-072

Butterfly valve with electrical actuator Series BUW6-DSE-07; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 150mm; Length 56mm; Operating time 20s; Voltage 400V/50/60Hz; 3-phase

Intrastat No.: 84818085
Country of origin: France
Weight: 8.27 Kg
Short Itemnumber: BUW6150DSE072
https://www.stasto.eu/web/image/product.template/240454/image_1920?unique=24fee4a

butterfly valve with electrical actuator series BUW6-DSE-01; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...16bar; DN 150mm; length 56mm; operating time 34s; voltage 24...240VAC / 24...135VDC

1.911,50 € 1911.5 EUR 1.911,50 €

price on request

  • Diameter
  • Male thread
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2
  • Operating time

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 150 mm
Length 56 mm
Electrical key figures
Voltage 24...240VAC / 24...135VDC
characteristics
Operating time 34 s
BUW6-150-DSE-B x 1.0
Butterfly valve with bare shaft BUW6-150-DSE-B
Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 150mm; Length 56mm; Pressure range 0…16bar; Flange PN10/16/ANSI150
Add to Cart
VS150-0M20-Q22 x 1.0
VS150-0M20-Q22
Electrical actuator Series VR/VS; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP68; Torque 150Nm; Operating time 20s; Flange ISO5211 F07/F10-Stern 22mm; Voltage 400V/50/60Hz; 3-phase
