Ball valves - automatically operated

DN	Length	Pressure range	Female thread	Voltage	Design	Type	Sequence
25 mm	120 mm	0...350 bar	G 1 1/4"	-	-	BA234-114-D0	27630006
25 mm	130 mm	0...250 bar	G 1 1/2"	-	-	BA234-112-D0	27630007

Varianten

DN	Length	Pressure range	Female thread	Voltage	Design	Type	Sequence
13 mm	83 mm	0...500 bar	G 1/2"	24VDC / 48V/50-60Hz	With integrated LED-yellow and VDR	BA234-12-D0-ABS51-C001-03-C002-31-LV-2	27630004
13 mm	83 mm	0...500 bar	G 1/2"	24VDC / 48V/50-60Hz	With integrated LED-yellow and VDR	BA234-12-D0-EB0X01-ABS52-C001-03-C002-31-LV-2	27630005

High pressure ball valve Series BA234-L/S-D0

Male thread According to ISO 8434-1 (DIN 2353); Double acting actuator; Body, Ball 1.4571/1.4404; Seals POM/NBR; For hydraulic liquids; Medium temperature -30...+100°C

To Series: High pressure ball valve Series BA234-L/S-D0

Grundversion

DN	Length	Pressure range	Male thread	Type	Type	Sequence
10 mm	80 mm	0...500 bar	M22x1,5	14S	BA234-14S-D0	27640000
25 mm	108 mm	0...350 bar	M36x2	28L	BA234-28L-D0	27640001

High pressure ball valve Series BA234-L/S-S0

Male thread According to ISO 8434-1 (DIN 2353); Single acting actuator; Body, Ball 1.4571/1.4404; Seals POM/NBR; For hydraulic liquids; Medium temperature -30...+100°C

To Series: High pressure ball valve Series BA234-L/S-S0

Grundversion

Male thread	DN	Length	Type	Pressure range	Type	Sequence
M24x1,5	13 mm	86 mm	16S	0...500 bar	BA234-16S-S0	27650000
M18x1,5	10 mm	74 mm	12L	0...500 bar	BA234-12L-S0	27650001

High pressure ball valve Series BA234-S0

Female thread; Single acting actuator; Body, Ball 1.4571/1.4404; Seals POM/NBR; For hydraulic liquids; Medium temperature -30...+100°C

To Series: High pressure ball valve Series BA234-S0

Grundversion

Female thread	DN	Length	Pressure range	Type	Sequence
G 1/4"	6 mm	69 mm	0...500 bar	BA234-14-S0	27660000
G 3/4"	20 mm	95 mm	0...350 bar	BA234-34-S0	27660001
G 1 1/2"	25 mm	130 mm	0...250 bar	BA234-112-S0	27660002

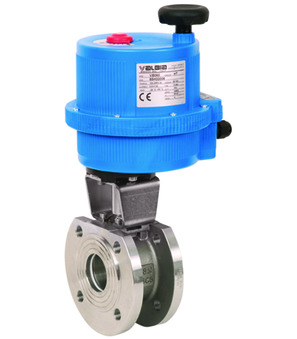

Flanged ball valve with electrical actuator Series BA048; Flange PN16; Body, Ball 1.4301; Seals PTFE/FKM; Medium temperature -20...+160°C; DN 80mm; Pressure range 0-16bar; Length 122mm; Operating time 27s; Voltage 100-240VAC

To Series: Flanged ball valve with electrical actuator Series BA048

DN	Length	Voltage	Pressure range	Operating time	Type
80 mm	122 mm	100-240VAC	0...16 bar	27 s	BA048-80-0H

BA066-12-S0-A

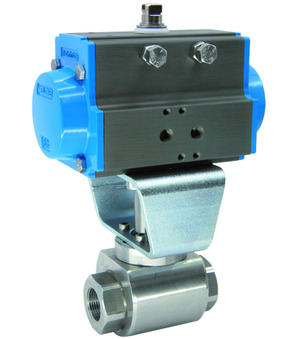

Ball valve with pneumatic actuator Series BA066; ATEX zone 1 and 21; Female thread; Body, Ball 1.4571; Seals PEEK/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+100°C; For liquids; G 1/2"; Nominal diameter 13mm; Pressure range 0…400bar; Length 85mm; Actuator PAS0855

To Series: Ball valve with pneumatic actuator Series BA066-S0-A

Female thread	DN	Length	Pressure range	Design	Type
G 1/2"	13 mm	85 mm	0...400 bar	ATEX	BA066-12-S0-A

Ball valve made of stainless steel Series BA486-B-A

ATEX II 2 G/D; Bare shaft; Full bore; Three-parts type; Female thread; Body, Ball 1.4404; Seals PTFE/EPDM; Medium temperature -20...+150°C

To Series: Ball valve made of stainless steel Series BA486-B-A

Grundversion

Female thread	DN	Length	Pressure range	Design	Type	Sequence
G 1/2"	15 mm	62 mm	0...100 bar	ATEX	BA486-12-B-A	27690000
G 1"	25 mm	82 mm	0...64 bar	ATEX	BA486-10-B-A	27690001

Ball valve made of stainless steel Series BA486-B-AH

ATEX II 2 G/D; Bare shaft; Full bore; Three-parts type; Female thread; Body, Ball 1.4404; Seals PTFE/EPDM; Medium temperature -20...+150°C; Free of oil and grease for hydrogen

To Series: Ball valve made of stainless steel Series BA486-B-AH

Grundversion

Female thread	DN	Length	Pressure range	Design	Type	Sequence
3" NPT	80 mm	150 mm	0...40 bar	ATEX	BA486-30N-B-AH	27700000
4" NPT	100 mm	178 mm	0...25 bar	ATEX	BA486-40N-B-AH	27700001
2 1/2" NPT	65 mm	128 mm	0...40 bar	ATEX	BA486-212N-B-AH	27700002
1/4" NPT	9 mm	52 mm	0...100 bar	ATEX	BA486-14N-B-AH	27700003
3/8" NPT	10 mm	52 mm	0...100 bar	ATEX	BA486-38N-B-AH	27700004
