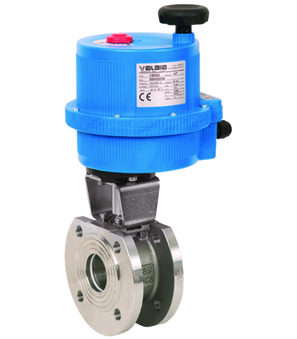

Flanged ball valve with electrical actuator BA048-80-0H

Flanged ball valve with electrical actuator BA048-80-0H

Flanged ball valve with electrical actuator Series BA048; Flange PN16; Body, Ball 1.4301; Seals PTFE/FKM; Medium temperature -20...+160°C; DN 80mm; Pressure range 0-16bar; Length 122mm; Operating time 27s; Voltage 100-240VAC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 20.28 Kg
Short Itemnumber: BA048800H
https://www.stasto.eu/web/image/product.template/138127/image_1920?unique=e5e4a60

flanged ball valve with electrical actuator series BA048; flange PN16; body, ball AISI 304; seals PTFE/FKM; medium temperature -20...+160°C; DN 80mm; pressure range 0-16bar; length 122mm; operating time 27s; voltage 100-240VAC

1.794,10 € 1794.1 EUR 1.794,10 €

price on request

  • DN
  • Length
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 80 mm
Length 122 mm
Electrical key figures
Voltage 100-240VAC
pressure
Pressure range 0...16 bar
characteristics
Actuator VB110H
Operating time 27 s

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Flanged ball valve with electrical actuator Series BA048_EN.pdf
Download
CAD / 3D
1
CADSTEP_BA048800H.stp
Download
Flanged ball valve 720000-80
720000-80 x 1.0
Flanged ball valve 720000-80
Flanged ball valve Series 720000; Flange PN16, Full bore; Body, Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 80mm; Length 122mm
Add to Cart
Electrical actuator VB110-H
VB110-H x 1.0
Electrical actuator VB110-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100-240VAC; Protection class IP67
